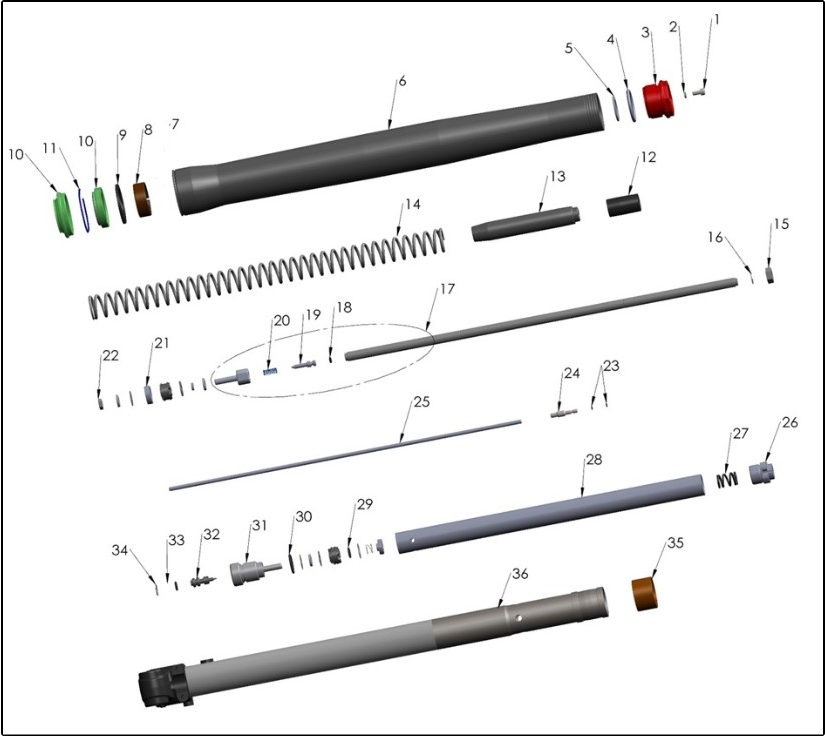

2027 Cobra CX50 SRx FWE - FORK LEG ASSEMBLY - BRAKE SIDE
2027 Cobra CX50 SRx FWE - FORK LEG ASSEMBLY - BRAKE SIDE
1. M4 x 0.7 x 8 - SHCS - ZINC
HCBC0408
$1.09
2. GASKET - BLEED SCREW FORK
ZCKG0001
$2.88
3. FORK CAP - CONVENTIONAL REBOUND 32MM USD
KCCS0004C
$87.89
4. O-RING - 3MM X 27MM ID
ZCMUOR18
$2.20
5. FORK SPRING WEAR PLATE 32MM
KCCS0036
$6.54
6. FORK - OUTER TUBE 32MM
KCCS0005
$220.86
8. FORK - GLIDE RING BOTTOM 32MM
KCCS0006
$14.33
9. SPACER - FORK SEAL- 32MM
KCCS0032
$7.65
10. FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)
KKCS0004
$39.93
11. FORK - SEAL RETAINER RING CLIP - 32MM
KCCS0002
$6.54
12. FORK - JOUNCE BUMPER
KCC60067
$8.32
13. GUIDE - FORK SPRING - 32MM
KCCS0013
$22.12
14. SPRING - FORK 0.25 KG/MM 32MM KING - STD
KCCS3225
$48.88
14. SPRING - FORK 0.23 KG/MM 32MM KING - LIGHT
KCCS3223
$48.88
14. SPRING - FORK 0.27 KG/MM 32MM KING - HEAVY
KCCS3227
$48.88
15. NUT JAM 3/8-24 CLASS 8
HCNJ3824
$3.32
16. FORK - RING CLIP - SPRING GUIDE RETAINER
KCC60068
$4.76
17. DAMPER ROD ASSEMBLY 37MM
KAC60003
$98.46
18. O-RING MID-VALVE ADJ NEEDLE
KCC60058
$1.09
19. NEEDLE - FORK MID-VALVE ADJUSTER
KCC60050
$27.68
20. SPRING - FORK ADJUSTER NEEDLE
KCC60051
$5.43
21. FORK - MID VALVE GLIDE RING
KCCS0018
$9.88
22. 6MM JAM NUT
HCNJ0601
$1.09
23. ORING - 2.1MM ID - 1MM - BUNA
BCKG0033
$2.20
24. FORK ADJUSTMENT SCREW TOP - SHORT
KCCS0033
$40.59
25. FORK ADJUSTER PIN
KCC60049
$19.90
26. FORK - CARTRIDGE CAP
KCMU0013
$32.14
27. FORK - TOP OUT SPRING
KCKG0050
$8.77
28. CARTRIDGE TUBE - JR KG 65 FORKS - ALUM
KCKG0019
$49.94
29. O-RING - FORK - BASE VALVE & COMP ADJ
KCMU0021
$1.09
30. O-RING FORK BOTTOM PLUG
ZCKGB017
$2.20
31. FORK - BOTTOM PLUG - ADJUSTABLE COMPRESSION
KCC60069
$76.20
32. FORK BOTTOM PLUG ADJUSTMENT SCREW
KCC60048
$33.25
33. O-RING 6.07X1.78 SILICONE
ZCMUOR03
$1.09
34. RING CLIP - FORK ADJUSTMENT SCREW BOTTOM
KCCS0031
$3.87
35. FORK - GLIDE RING TOP 32MM
KCCS0007
$14.33
36. FORK LOWER COMPLETE BRAKE SIDE - BLACK - HOLLOW AXLE
KAMU0003BLK
$216.86
TOOL. FORK - TRAVEL LIMITER SPACER
MCMUTL39
$61.18
TOOL. FORK CAP WRENCH - 32MM
MCMUTL32
$17.67
TOOL. CARTRIDGE TUBE WRENCH
MCMUTL04
$49.94
