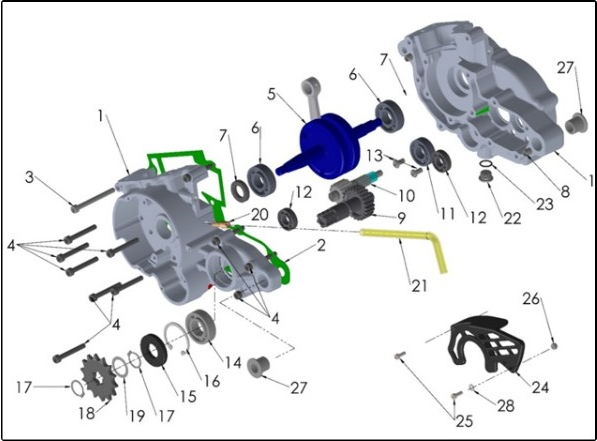

2027 Cobra CX50 SRx FWE - ENGINE - CRANKSHAFT & TRANSMISSION
2027 Cobra CX50 SRx FWE - ENGINE - CRANKSHAFT & TRANSMISSION
1. ENGINE CASE SET FOR CS ONLY- 2024 - W BEARINGS AND SEALS
EKMU2024
$598.88
2. GASKET - CENTERCASE - CX50 VENOM
ZCMU0015
$14.33
3. M6 X 65 SHCS ZINC
HCBC0665
$1.54
4. M6 X 35 SHCS ZINC (Replaces HCBC0604)
HCBC0635
$1.09
5. CRANKSHAFT ASSY - WIDE CHEEK
ECMU0284
$349.88
6. BEARING - 50CC CRANKSHAFT & 65CC TRANS
ECMU0016
$22.12
7. SEAL - CRANKSHAFT - 50CC STD
ECMU0118
$11.44
8. DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215
ECMU0122
$2.20
9. GEAR - OUTPUT POLISHED - FACTORY WORKS 2027
ECMU0999M
$175.88
10. GEAR - INPUT TRANSMISSION - POLISHED - 2027 FW
ECMU0268M
$143.88
11. BEARING - TRANS. SEC. GEAR
ECMU0001
$22.12
12. BEARING 6001 NO SEALS
ECKG0031
$9.88
14. BEARING OUTPUT- 50 & 65
ECKGBR01
$29.91
15. SEAL OUTPUT - CX50 VENOM
ECMU0236
$10.99
16. SNAP RING - OUTPUT BEARING - CX50 VENOM
ECMU0237
$3.87
17. SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT
ECKGSR03
$2.54
18. SPROCKET 15T
PCKG0015
$18.78
19 A. SHIM - SPROCKET - 0.2 THK 20/28 ID/OD
ECMU0176
$3.32
19 B. SHIM - SPROCKET - 0.3 THK 20/28 ID/OD
ECMU0177
$3.32
19 C. SHIM - SPROCKET - 0.5 THK 20/28 ID/OD
ECMU0178
$3.32
20. VENT HOSE NIPPLE (LARGE)
ECMU0233P
$9.88
21. HOSE CRANKCASE VENT 2010 - CURRENT 50cc
ECMU0557
$8.88
22. PLUG - OIL FILL - OIL DRAIN - COOLANT - VENOM - BLACK
ECMU0272BLK
$12.11
23. O-RING - KICK SHAFT & OIL FILL PLUG
ZCMUB014
$1.42
24. GUARD - COUNTERSHAFT SPROCKET - CX50SRX
ECMU0289
$33.25
25. M4 x 0.7 x 12 - SHCS - ZINC
HCBC0412
$1.09
26. 4MM LOCK NUT
HCNL0401
$1.09
27. BUSHING - ENGINE PIVOT - 12MM
ECC60028
$13.22
28. 4MM FLAT WASHER
HCWF0401
$0.53
ENGINE. ENGINE - 2027 FACTORY WORKS
EACS2027FWE
$2,379.88
GASKET KIT. COMPLETE - 2024 - 50CC VENOM
ZKMU2024
$68.88
