Cobra Moto

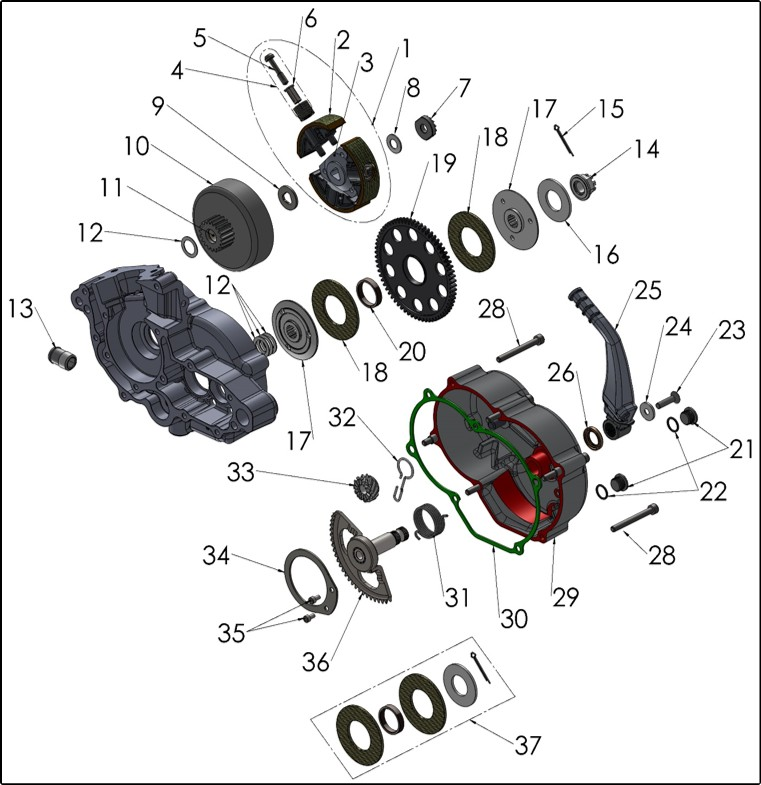

2027 Cobra CX50 SRx FWE - ENGINE - CLUTCH & KICK LEVER
2027 Cobra CX50 SRx FWE - ENGINE - CLUTCH & KICK LEVER
1. CLUTCH - KING/FWE - COMPLETE ASSY - 5GX - YELLOW BAG
CAFW0500
$328.88
2. 3 SHOES & STACKS W BOLTS - KING/FWE - 5GX - YELLOW BAG
CAFW0050
$208.88
3. CLUTCH ARBOR - TRI-SIDE
CCMU0005
$127.84
4. WASHER STACKS - KG/FWE - SET OF 3 - CLUTCH - 5GX -YELLOW BAG
CAFW0005
$41.88
5. BOLT - TORX - 5GX CLUTCH - M6 X 29 - SPECIAL
HCBT0001
$8.77
6. SLEEVE - CLUTCH STACK 5GX
CCMU0008
$4.32
7. CRANKSHAFT START NUT - CLUTCH NUT
ECMU0018
$31.02
8. BELLVILLE - LOCK WASHER - 10MM
ECDC0030
$3.20
9. SHIM - CLUTCH BACKING SPACER - 3 SPLINE
CCMU0007
$14.33
10. CLUTCH BASKET NEDL BRNG - V4
ECMU0120
$99.57
11. BEARING - NEEDLE - CLUTCH 3 SHOE
ECMU0119
$14.33
12. SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15
ECMU0040
$2.76
13. FITTING-COOLANT
ECMU0132
$27.68
14. NUT V3 CFD
ECMU0307
$20.56
15. COTTERPIN (CFD) 1/8 X 7/8\" 18-8 STAINLESS
HCCP0010
$0.53
16. BELLEVILLE SPRING V3 CFD
ECMU0308
$10.99
17. SLIP HUB V3 CFD
ECMU0306
$42.82
18. FRICTION MATERIAL V3 CFD THICK
ECMU0249
$18.78
19. GEAR V3 CFD
ECMU0301
$176.80
20. BUSHING V3 CFD 7MM
ECMU0305
$16.22
21. PLUG - OIL FILL - OIL DRAIN - COOLANT - VENOM - BLACK
ECMU0272BLK
$12.11
22. O-RING - KICK SHAFT & OIL FILL PLUG
ZCMUB014
$1.42
23. M6 X 16 FLAT HEAD W ZINC
HCFH0616
$1.09
24. WASHER - KICK ARM
ECMU0250
$9.88
25. LEVER KICK START ASSEMBLY
EAMU0011
$83.32
26. SEAL - KICKSTARTER
ECDC0078
$4.32
28. M6 X 55 SHCS ZINC (Replaces HCBC0608)
HCBC0655
$1.09
29. COVER -CLUTCH MACHINED W SEAL AND PIN - CX50 VENOM
ECMU0263
$154.54

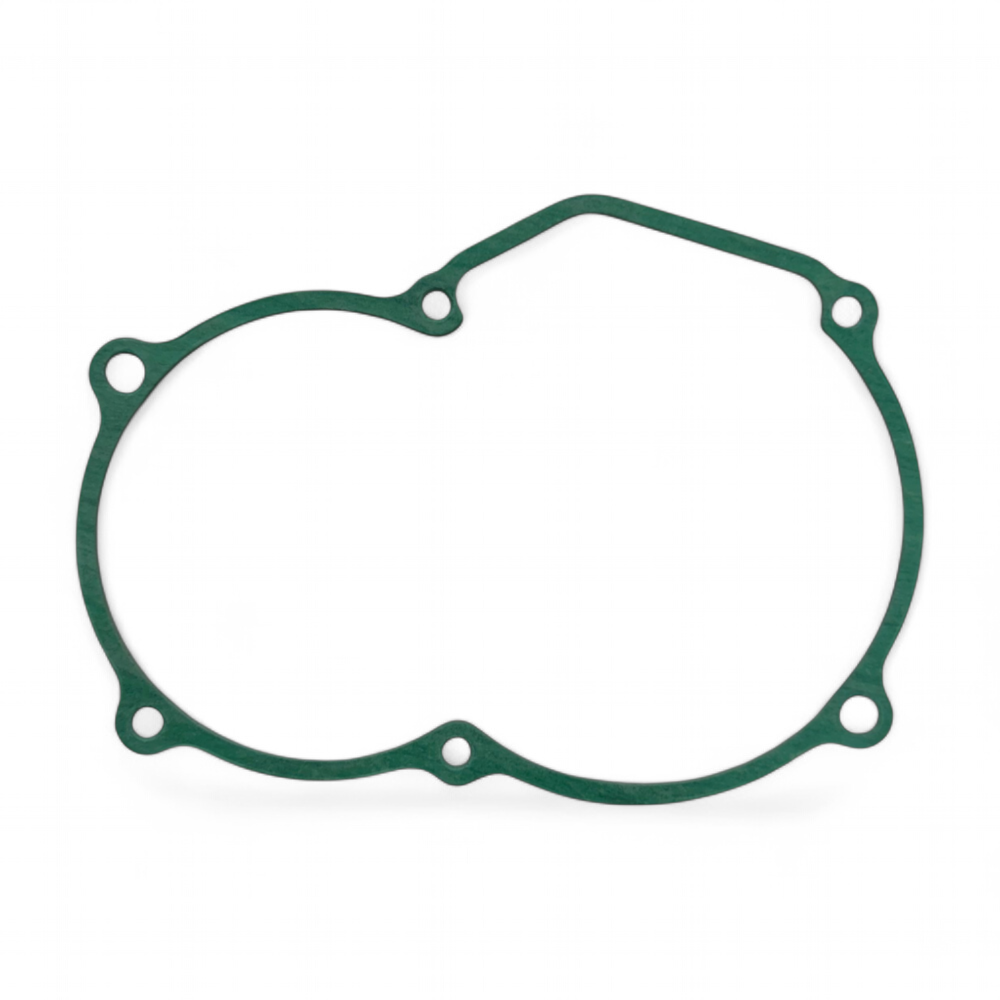

30. GASKET - CLUTCH COVER - CX50 VENOM
ZCMU0017
$14.78
31. SPRING - KICKSTART RETURN - CX50 VENOM
ECMU0273
$15.56
32. SPRING - KICK START DOG-SM.SPRING
ECMUSP01
$8.88
33. KICKSTARTER SMALL GEAR
ECMU0207
$37.70
34. BRACKET - KICK SHAFT - CX50 VENOM
ECMU0278
$7.21
35. M5 X 8mm SHCS CLEAR ZINC
HCBC0508
$4.43
36. GEAR - KICKSTART - CX50 VENOM
ECMU0269
$110.03

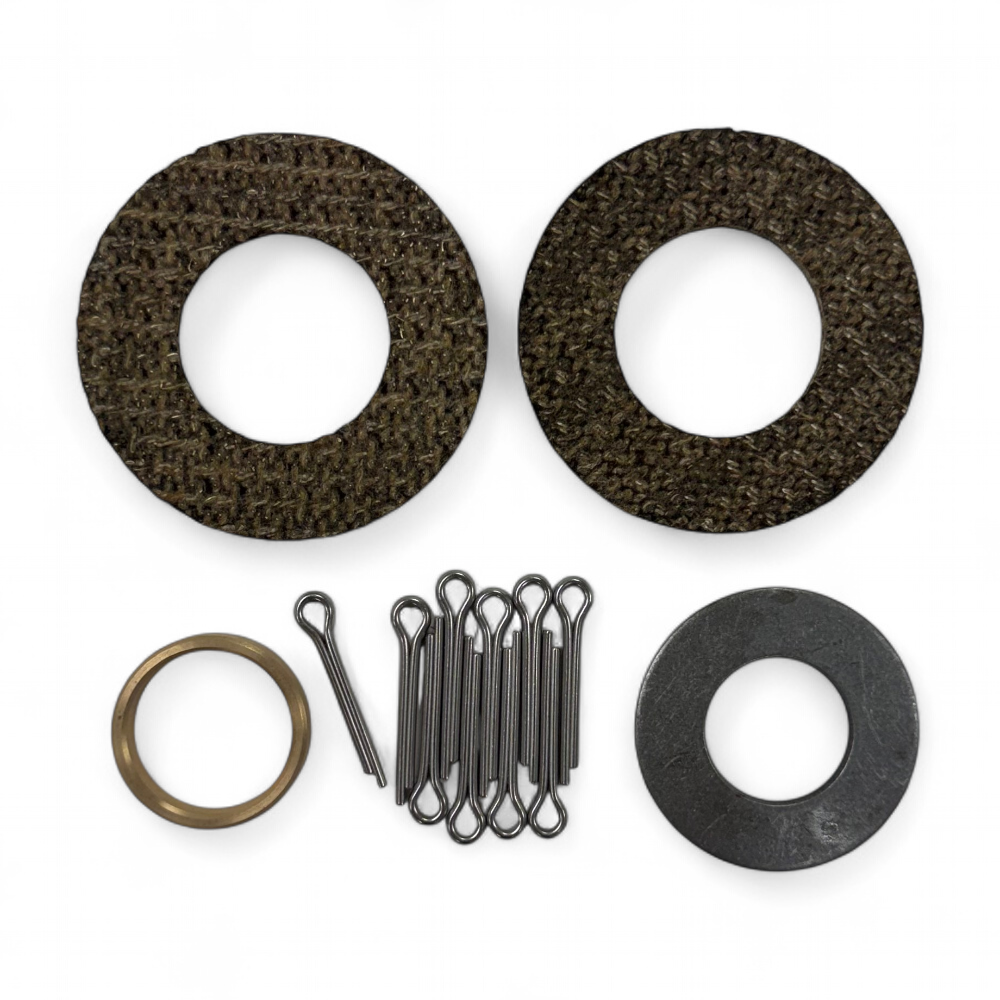

37. V3 CFD REFRESH KIT FOR 2011 & LATER
EKMU0033
$50.61
KIT. COTTERPIN PACK OF 10 1/8\" X 1 1/4\"
HKCP0001
$4.43
KIT. KICKSTART PIVOT KIT SPRING-BALL-SCREW
EKMU0002
$7.65
KIT. HARDWARE KIT - CLUTCH SHIM
HKAM0022
$29.50

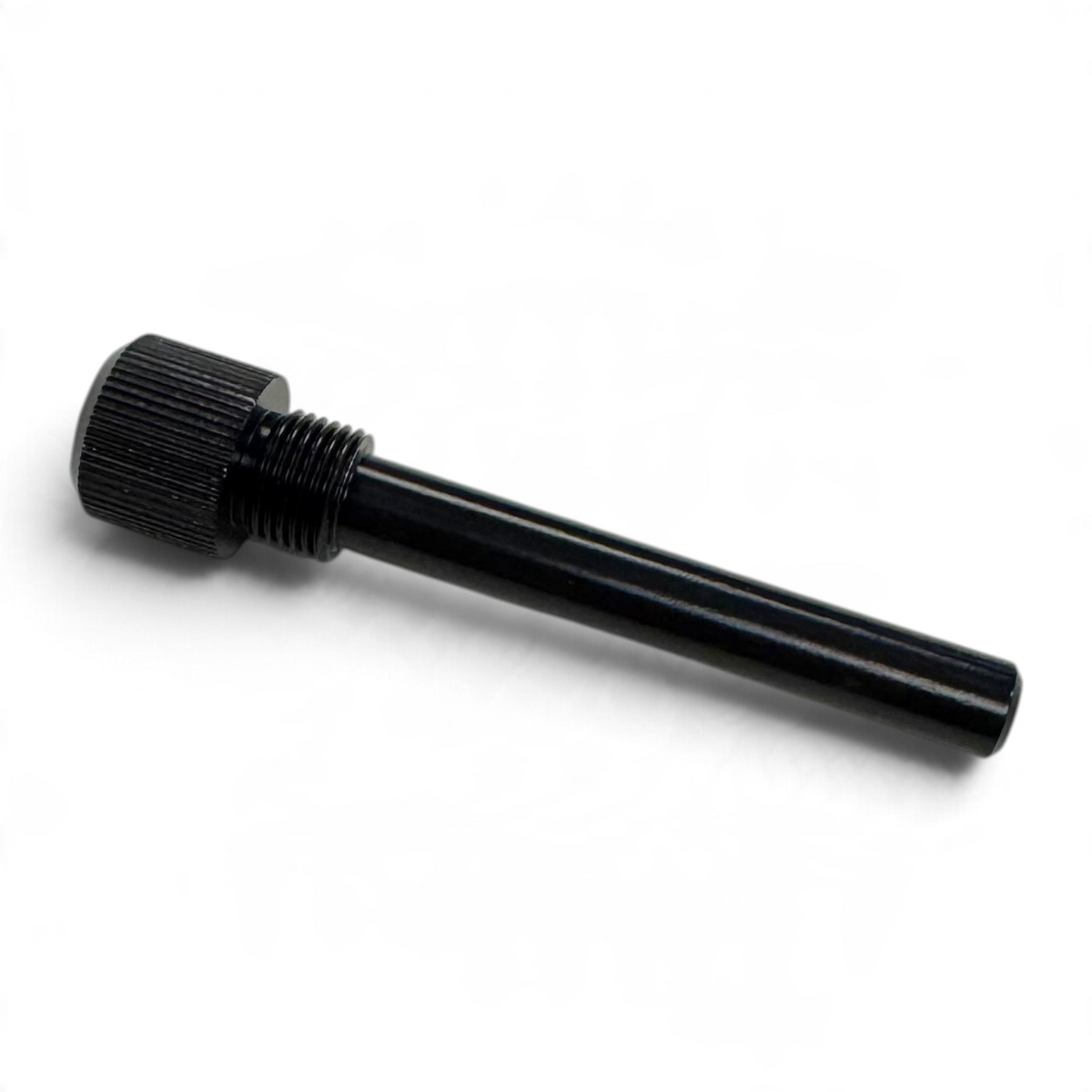

TOOL. CFD - CHECK STOP PIN - VENOM
MCMUTL40
$27.68

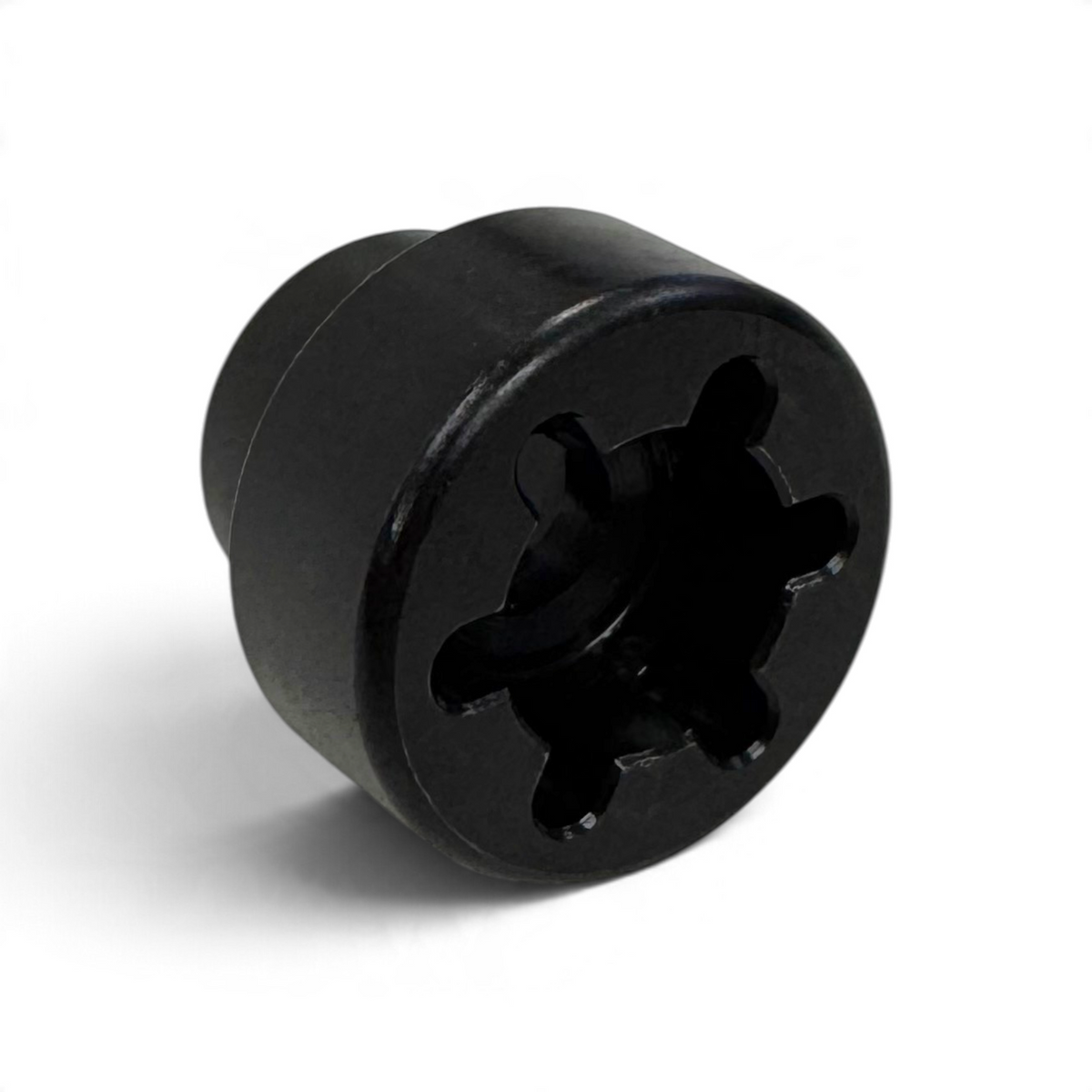

TOOL. SPROCKET SOCKET - HIGH TORQUE
MCMUTL18
$43.26

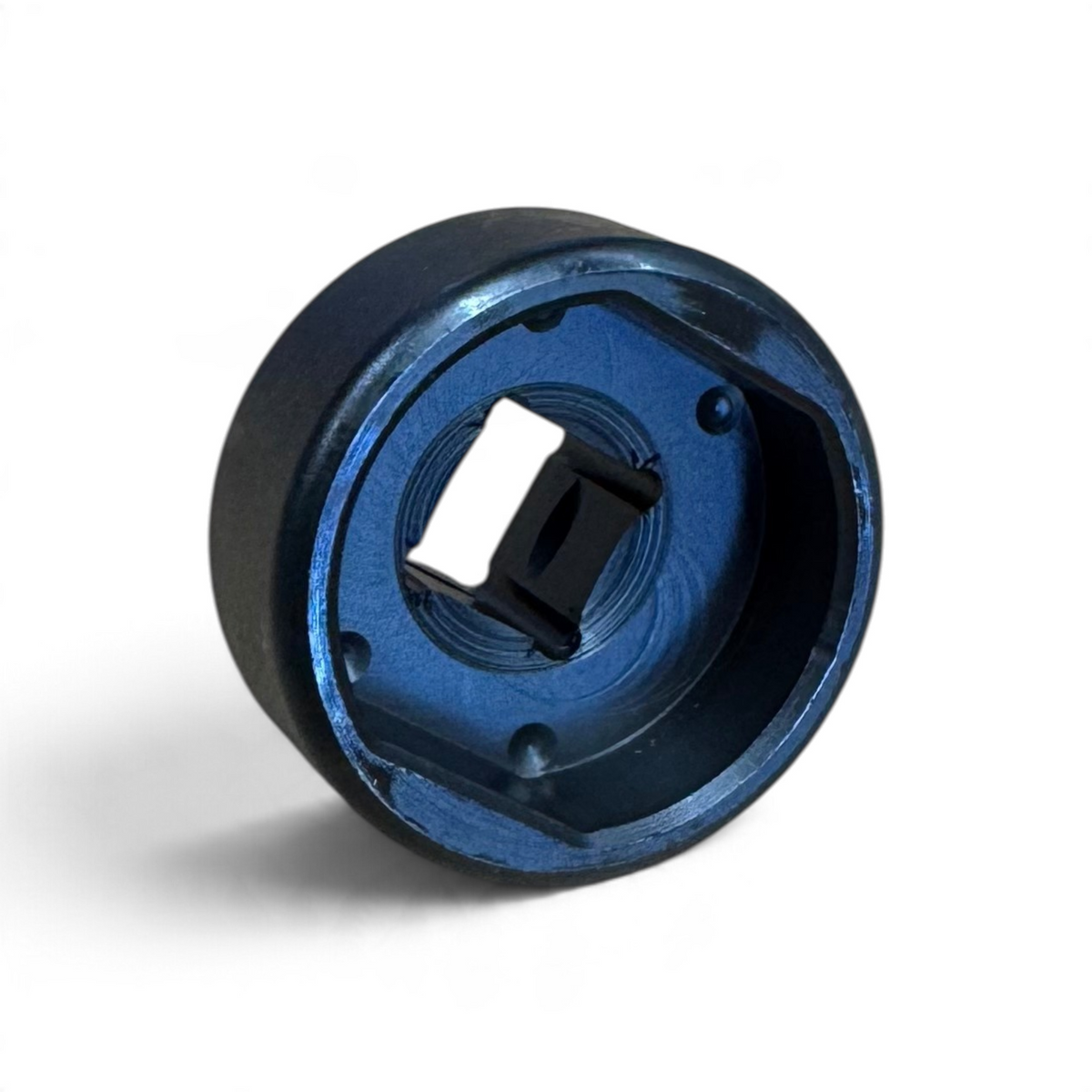

TOOL. SOCKET - CLUTCH NUT - CX50
ECMU0078
$35.59

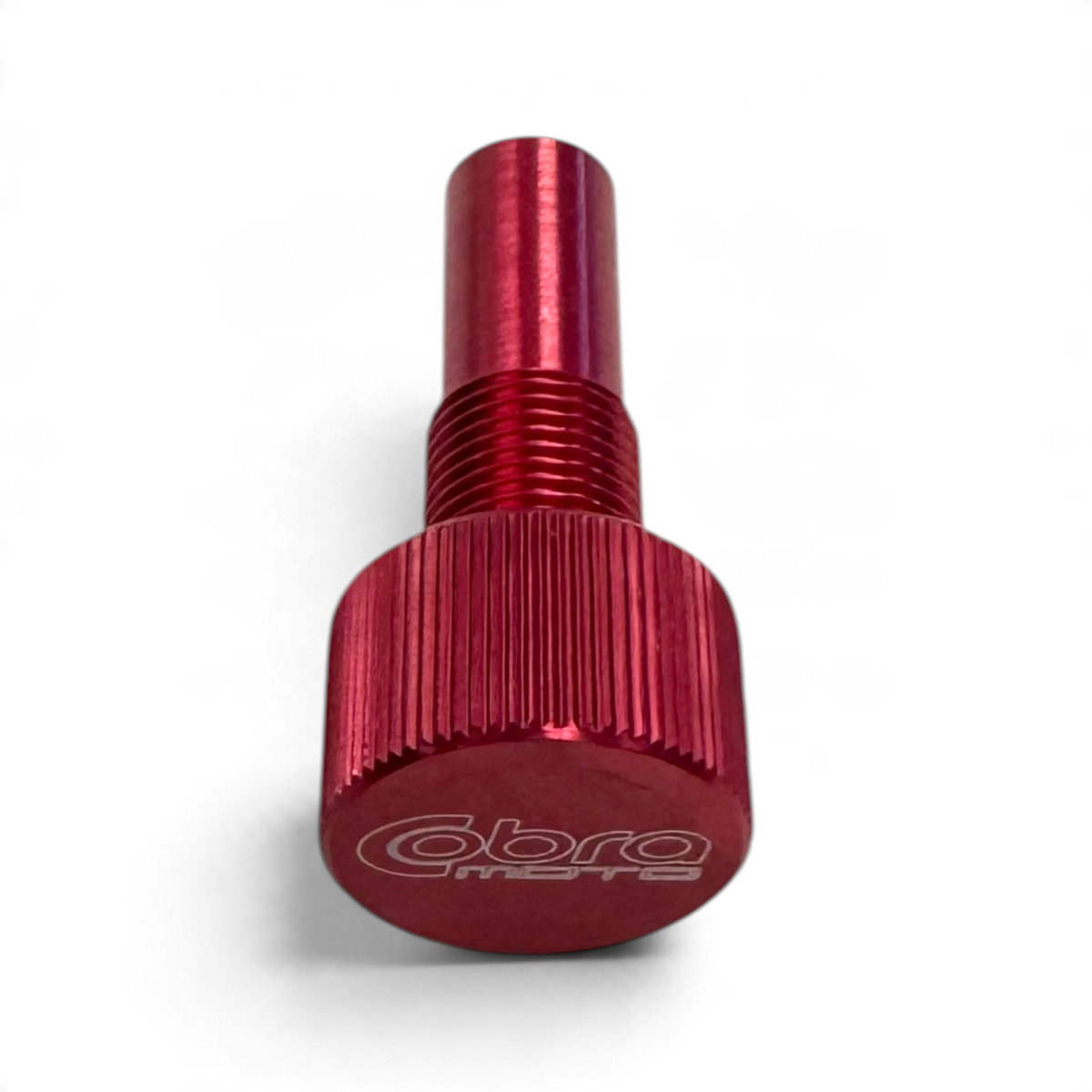

TOOL. PISTON STOP
MCMUTL03
$14.45

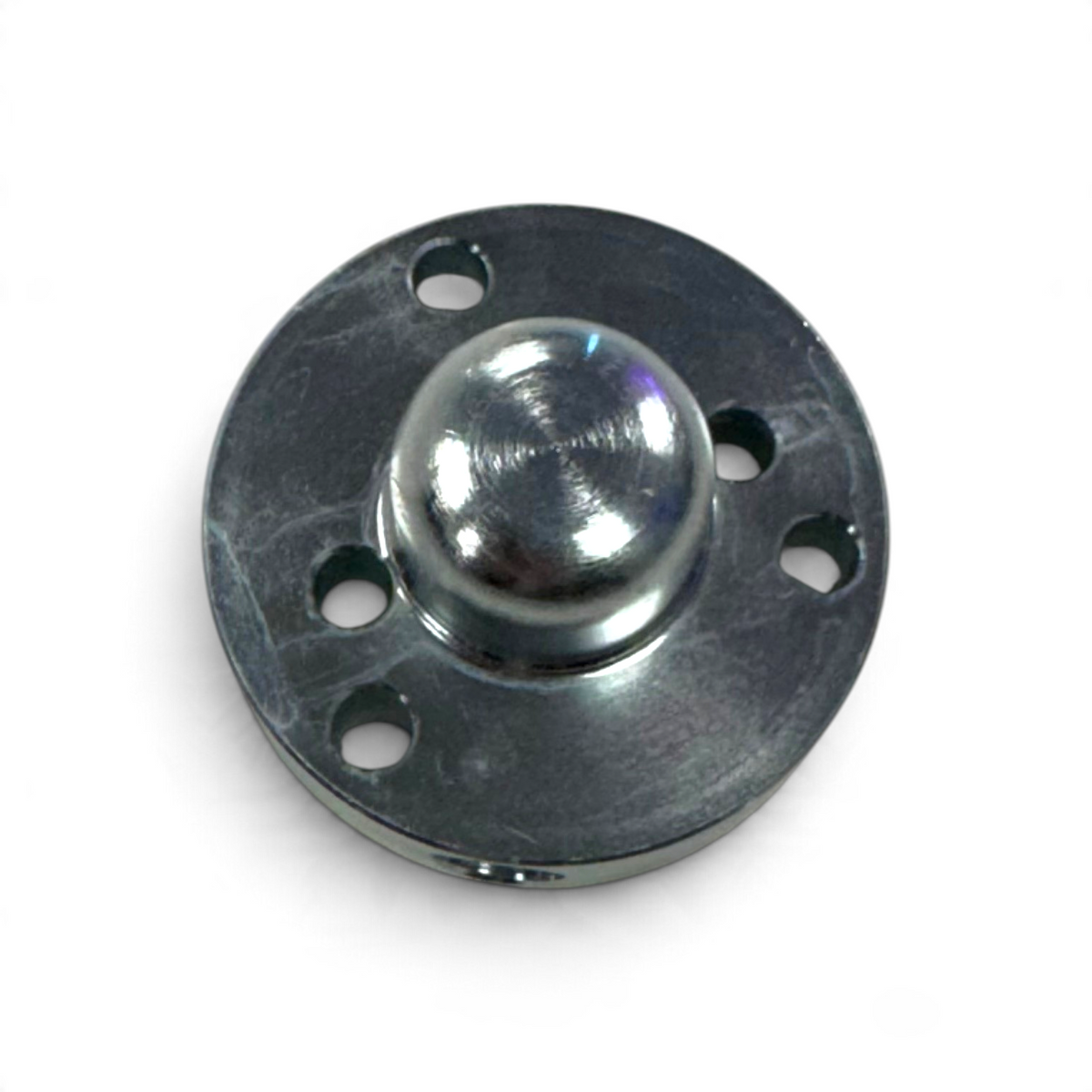

TOOL. PULLER - CLUTCH & FLYWHEEL - CX50
MCMUTL70
$27.68
