Cobra Moto

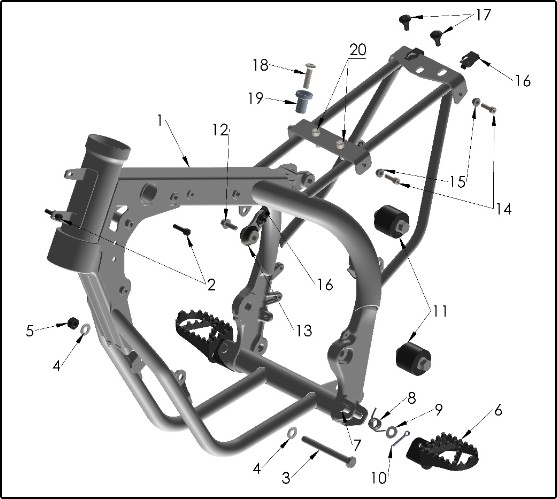

2027 Cobra CX50 JR - FRAME
2027 Cobra CX50 JR - FRAME
1. FRAME - JR 2026 - NEW PIPE
FACJ2026
$641.96
2. M5 x 0.8 x 20 - SHCS - - ZINC
HCBC0520
$1.09
3. M8 X 80 HH ZINC
HCBH0880
$6.66
4. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D.
HCWF0802
$0.53
5. M8 LOCKNUT 8MM TALL
HCNL0803
$2.20
6. FOOTPEG SET (LEFT & RIGHT)
TAMU0005
$63.41
7. CLEVIS PIN - FOOTPEG
FCMU0031
$4.32
8. SPRING - FOOTPEG STD KING/JR PEG
TCMU0106
$5.43
9. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D.
HCWF0802
$0.53
10. COTTERPIN - 1/8` X 3/4` 316 STAINLESS
HCCP0008
$0.53

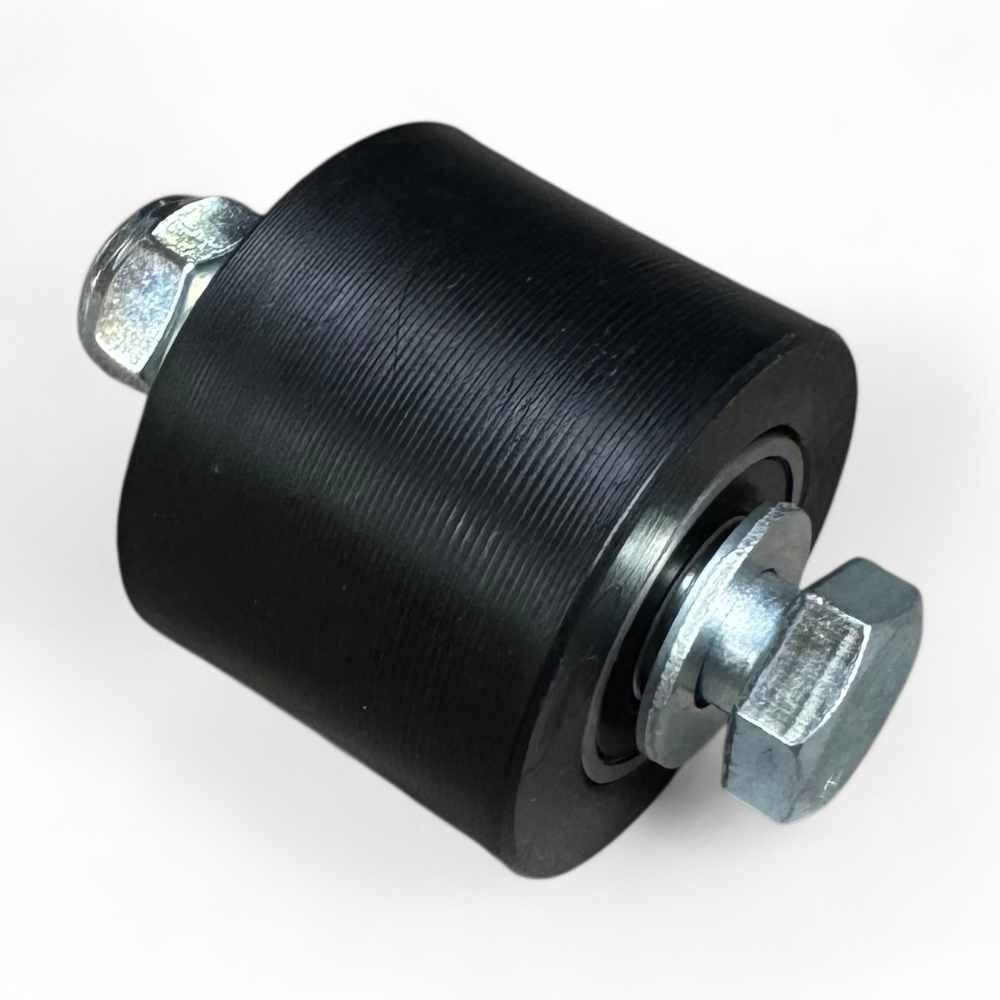

11. CHAIN ROLLER W BOLT BEARING & SEALS
FCC60020
$18.34
12. M6 X 16 FLANGED HD HEX 8MM ZINC
HCBF0616
$1.09
13. ISOLATION MOUNT
XCMU0033
$18.34
14. M5 x 0.8 x 16 - SHCS - - ZINC
HCBC0516
$1.09
15. WASHER - 5MM BODY PANEL
TCC60017
$4.32
16. WASHER - 5MM BODY PANEL
TCC60017
$4.32
17. BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR
HCSP0610
$3.20
18. 7MM TORX FLAT HEAD
HCSP0701
$2.76
19. BUSHING - MOUNT - REAR TANK AND SEAT - E3/JR 2025
TCMU0068
$8.68
20. M6 X 20 SHCS ZINC
HCBC0620
$1.09
