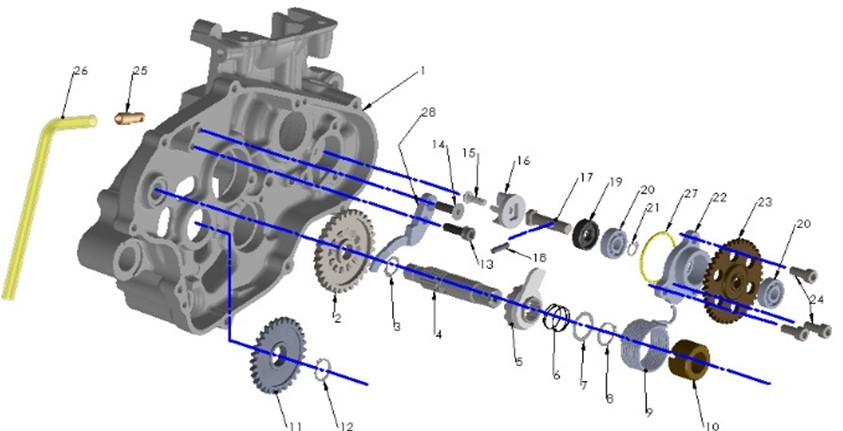

2027 Cobra CX65 - ENGINE - KICK MECHANISM & WATER PUMP
2027 Cobra CX65 - ENGINE - KICK MECHANISM & WATER PUMP
1. ENGINE CASE SET - CX65 WITH BEARINGS AND SEALS
EKC62024
$758.88
2. GEAR - KICKSTARTER
ECDC0033
$68.86
3. SNAP RING - EXT 12MM-GEAR RET
ECDC0035
$2.20
4. SHAFT - KICK STARTER - THREADED V3
ECC60203
$77.76
5. GEAR - KICK RAMP - NO ARMS
ECC60201
$53.28
6. SPRING RAMP KICK START MANUAL
ECDC0042
$6.66
7. WASHER - KICKSTART BACKUP
ECDC0043
$2.20
8. SNAP RING - EXT 16MM - SPRING RET
ECDC0036
$2.20
9. SPRING KICK START CX65
ECC60067
$43.26
10. SPACER - KICK SPRING CENTERING - 2015
ECC60202
$9.88
11. GEAR - KICK STARTER IDLER
ECDC0032
$73.31
12. SNAP RING - EXT 15MM - IDLER RET
ECDC0037
$2.20
13. HOLDER - KICK SPRING - M6 X 20
ECMU0174
$9.43
14. M6 X 16 FLAT HEAD W ZINC
HCFH0616
$1.09
15. M4X8 BUTTON HEAD SS
HCBB0403
$1.09
16. WATERPUMP IMPELLER ALUMINUM
ECKG0073
$33.25
17. SHAFT - WATERPUMP - 2015
ECC60173
$21.01
18. DOWEL PIN 4X16.0
ECDC0051
$2.20
19. SEAL - WATERPUMP 8x22x7TC
ECC60175
$6.66
20. BEARING - WATERPUMP 608 - 2015
ECC60174
$9.88
21. SNAP RING - WATERPUMP - 2015
ECC60176
$0.53
22. HOUSING - WATERPUMP - 2015
ECC60177
$43.26
23. GEAR - WATERPUMP DRIVE - PLASTIC - 2015
ECC60172
$33.25
24. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
25. SUPERSEDED BY PART NUMBER ECMU0233PP VENT HOSE NIPPLE (LARGE)
ECMU0233P
$9.88
26. HOSE CRANKCASE VENT - PRE 2010 50 & UP TO CURRENT 65
ECMU0534
$1.64
27. O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP
ZCMUOR07
$4.43
28. RAMP W STOP - KICK MECHANISM
ECC60200
$22.12
