Cobra Moto

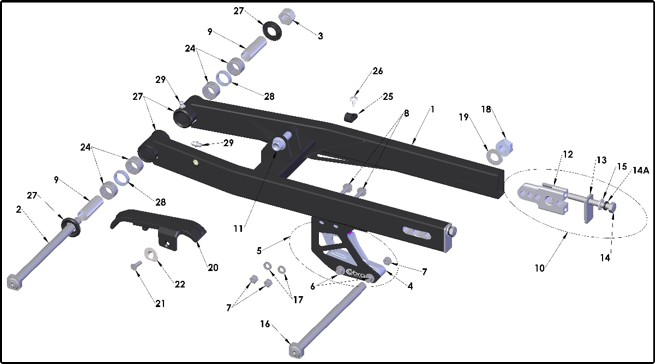

2027 Cobra CX50 SRx FWE - SWINGARM
2027 Cobra CX50 SRx FWE - SWINGARM
1. SWINGARM WELDED ASSY- NEEDLE BRNG - 2027
GACS2027
$264.88
2. BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER
GCMU0021
$143.42
3. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
4. CHAIN GUIDE - COMBINED SLIDER BOTTOM AND INSIDE
PCMU0060MP
$10.99
5. CHAIN GUIDE ASSY - 50s AND MICRO e
PAMU0001
$49.98
6. M6 X 25 FLANGED HD HEX 8MM ZINC
HCBF0625
$1.09
7. M6 LOCKNUT
HCNL0601
$1.09
8. M6 X 20 FLANGE HD HEX 8MM ZINC 8.8
HCBF0620
$1.09
9. SPACER TUBE - SWINGARM PIVOT
GCC60019
$28.80

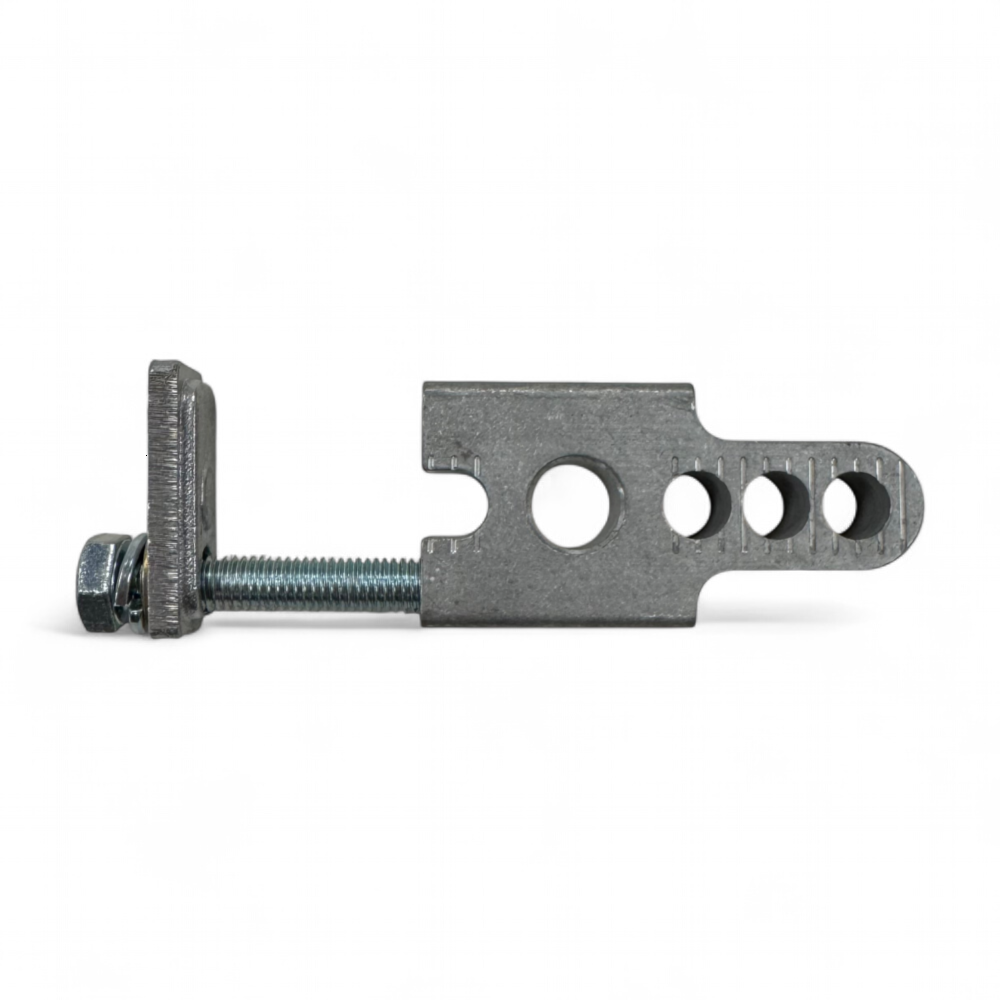

10. WHEEL PULL ASSEMBLY
FAMU0005
$32.25
11. M10 X 39 FLANGE HEAD - SHOCK BOLT (Replaces HCBF1040)
HCBF1039
$12.11
12. WHEEL PULL
FCMU0203
$24.35
13. ENDCAP - WHEEL PULL - KING & CM
FCMU0202
$8.77
14 A. 8MM LOCK WASHER STANDARD
HCWL0801
$0.53
14. M8 X 65 HH FULL THREADS ZINC
HCBH1865
$1.54
15. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
16. BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50
GCMU0020
$143.42
17. M6 FLAT WASHER DIN 125A - ZINC CLEAR
HCWF0601
$0.53
18. NUT - 12MM ACORN - ALUM
WCMU0038
$20.79
19. 12MM FLAT WASHER
HCWF1202
$0.53
20. SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT
GCMU0041
$16.56
21. #10X5/8 SELF TAPPING FLAT HEAD TORX
HCPP1058
$1.88
22. WASHER - RETAINING - SWINGARM GUARD
GCMU0038
$4.32
23. M5 LOCKNUT
HCNL0501
$1.09
24. BEARING - DRAWN CUP CAGED NEEDLE - SWINGARM PIVOT - 15 22 12
GCC60017
$18.78
25. CABLE CLAMP-7/16 INCH BLACK
HCCC0006
$1.09
26. #8X1/2 SELF THREAD CUTTING SCREW - FLAT HEAD - TORX
HCPP0801
$1.09
27. SEAL THRUST BEARING - SWINGARM - ALL 2025
GCMU0047
$9.88
28. SPACER - SWINGARM NEEDLE BEARING - 50CC
GCMU0048
$9.88
29. GREASE FITTING SMALL - ZERK
GCMU0012
$1.73
TOOL. BEARING REMOVAL - NEEDLE SWINGARM
MCMUTL26
$74.88
