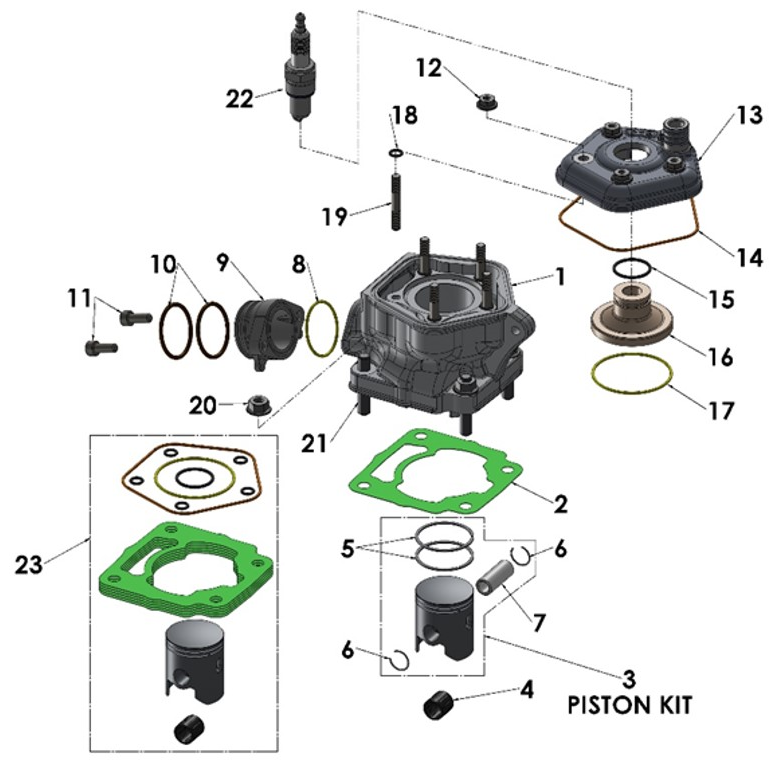

2027 Cobra CX50 JR - ENGINE - TOP END
2027 Cobra CX50 JR - ENGINE - TOP END
1. CYLINDER KIT - VENOM - KG&JR WIDE PATTERN
EKMU0362
$510.64
2 A. BASE GASKET - 0.2MM - CX50 WIDE BASE
ZCMU2402
$12.11
2 B. BASE GASKET - 0.3MM - CX50 WIDE BASE
ZCMU2403
$12.11
2 C. BASE GASKET - 0.4MM - CX50 WIDE BASE
ZCMU2404
$12.11
2 D. BASE GASKET - 0.5MM - CX50 WIDE BASE
ZCMU2405
$12.11

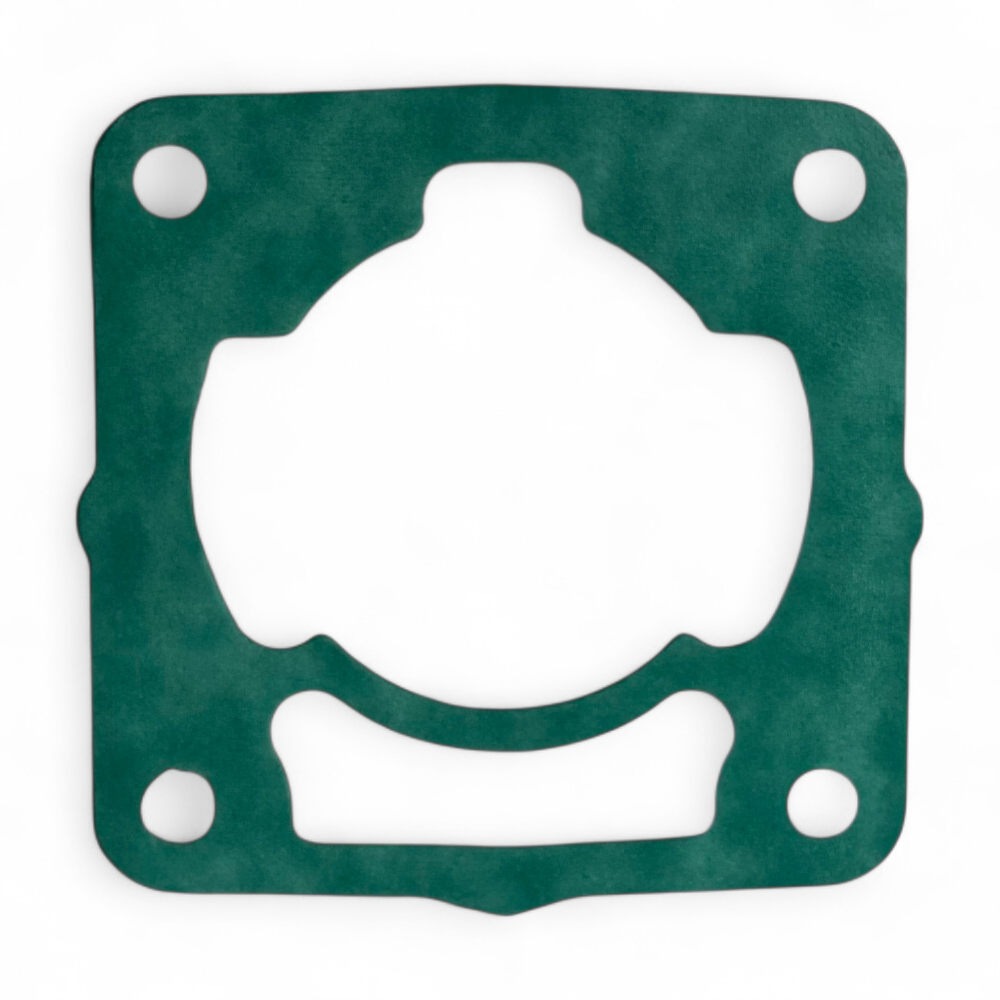

2 E. BASE GASKET - 0.6MM - CX50 WIDE BASE
ZCMU2406
$12.11
3. PISTON KIT-39MM NON-BRIDGED A
ECMU0276A
$104.47
3 B. PISTON KIT-39MM NON-BRIDGED B
ECMU0276B
$104.47
3 C. PISTON KIT-39MM NON-BRIDGED C
ECMU0276C
$104.47
3 D. PISTON KIT-39MM NON-BRIDGED D
ECMU0276D
$104.47
4. BEARING - WRIST PIN FOR 50CC
ECMU0077
$16.67
5. RING SET 39MM 50CC
ECMU0155
$32.14
6. CIRCLIP - PAIR - 39MM PISTON
ECMUSR00
$4.43
7. WRIST PIN - 50CC
ECKG0012
$17.22
8. O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP
ZCMUOR07
$4.43
9. FLANGE - EXHAUST CX50 & 65 2026 -
ECMU0282
$49.94
10. O-RING - EXHAUST FLANGE
ZCMOTE11
$3.20
11. M6 X 12 SHCS ZINC
HCBC0612
$1.09
12. 6MM FLANGE NUT-ZINC - CLASS 10
HCNF0601
$0.64
13. CYLINDER HEAD OUTER - 65CC & VENOM
ECC60149
$98.90
14. O-RING - CYL HEAD LARGE - 65CC & VENOM
ZCC60009
$7.65
15. ORING - HEAD INSERT - VITON
ZCMUOR23
$4.98
16. INSERT - CYLINDER HEAD - 2018 - CURRENT FWE 2026 JR & KG
ECMU0208
$98.90
17. O-RING - HEAD - MEDIUM 50CC
ZCMUOR05
$8.88
18. O-RING 6.07X1.78 SILICONE
ZCMUOR03
$1.09
19. STUD - CYLINDER HEAD 6MM X 41MM
ECC60107
$5.43
20. 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS
HCNF0801
$1.09
21. STUD - CYLINDER 8MM X 44.5MM
ECC60109
$7.21

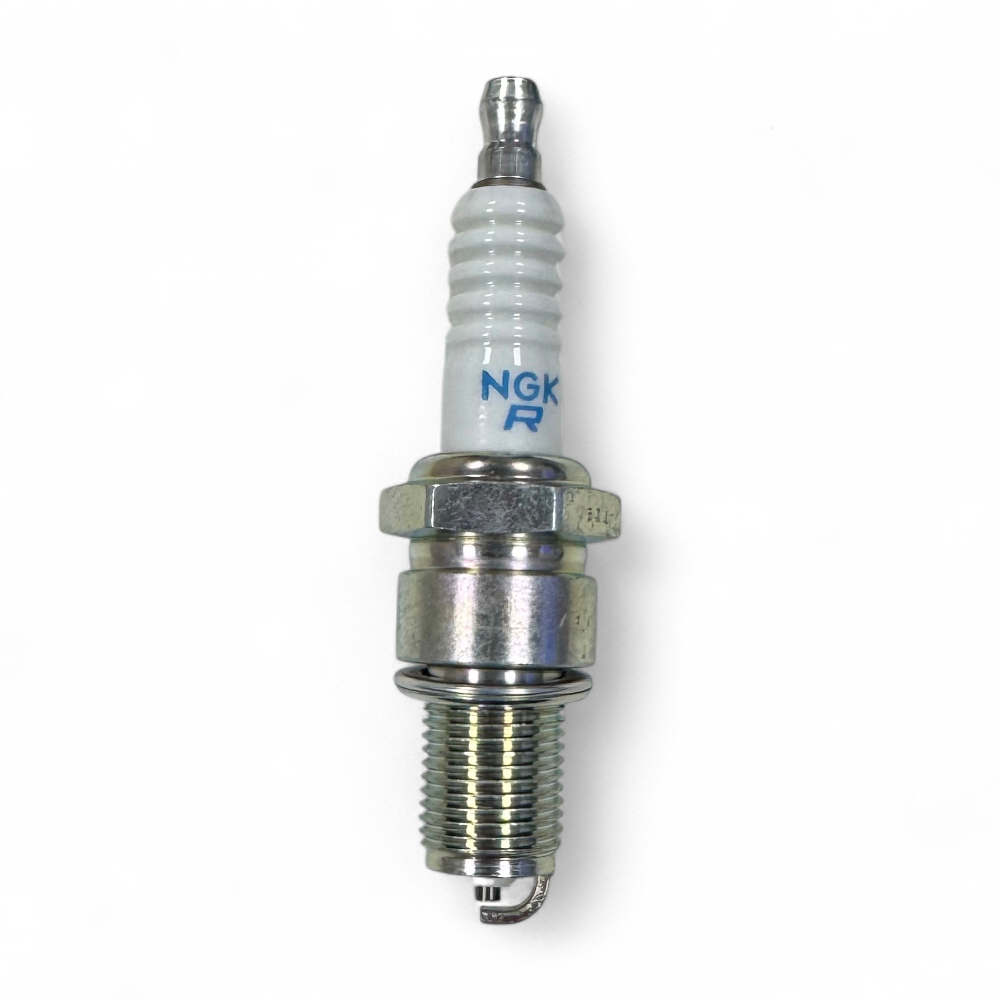

22. SPARK PLUG - NGK BPR8ES
ECMU0151
$7.88
23 A. REBUILD KIT - TOP END - VENOM ENGINE - A PISTON
EKMU2436
$165.67
23 B. REBUILD KIT - TOP END - VENOM ENGINE - B PISTON
EKMU2437
$165.67
23 C. REBUILD KIT - TOP END - VENOM ENGINE - C PISTON
EKMU2438
$165.67

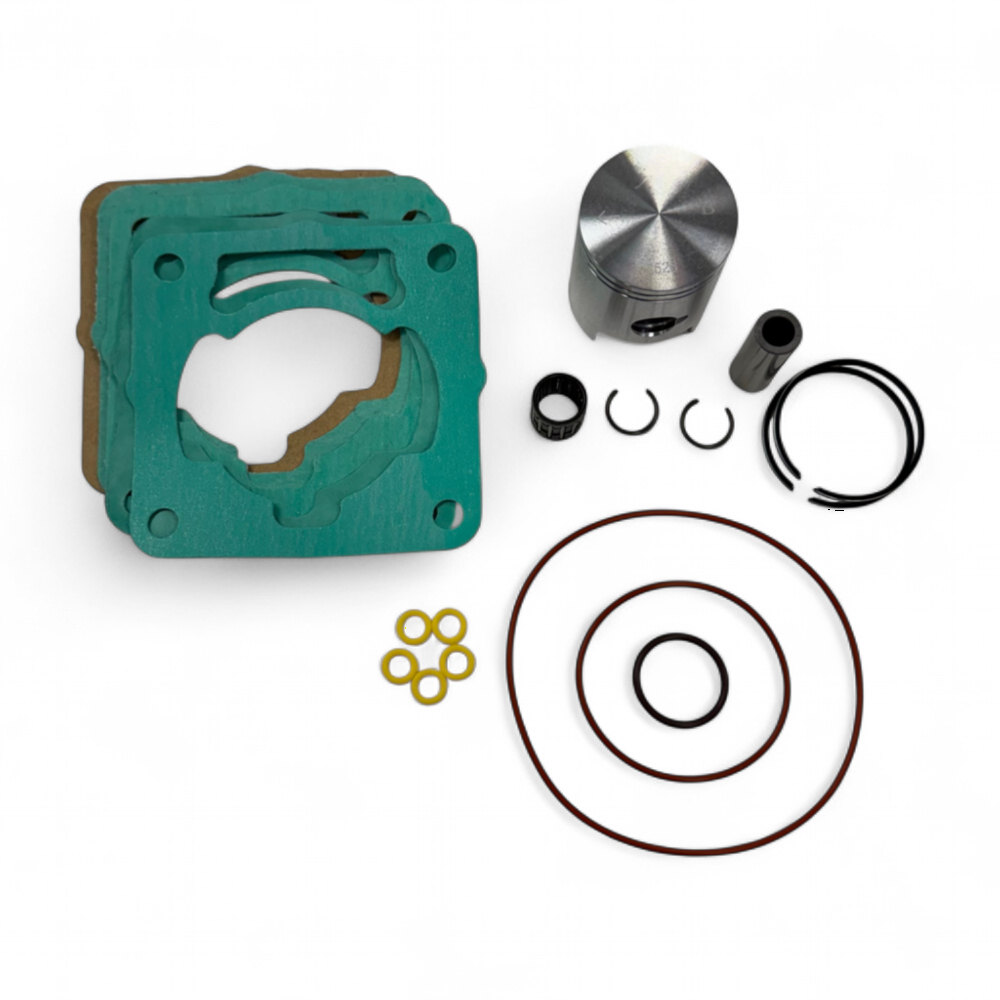

23 D. REBUILD KIT - TOP END - VENOM ENGINE - D PISTON
EKMU2439
$165.67

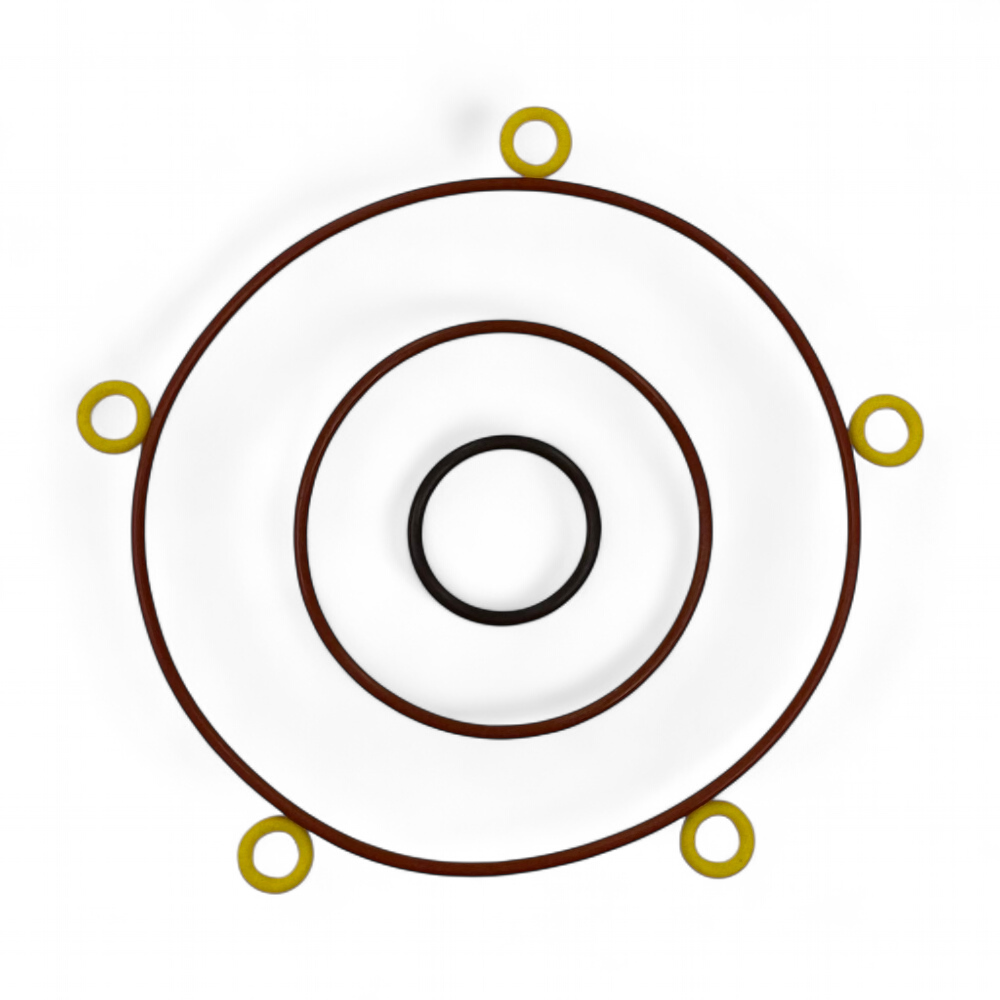

ACCESSORY. ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM
ZKMUOR13
$16.11
ENGINE. ENGINE - 2027 - LATER - CX50JR - VENOM
EACJ2027
$1,898.88
GASKET KIT. COMPLETE - 2024 - 50CC VENOM
ZKMU2024
$68.88
