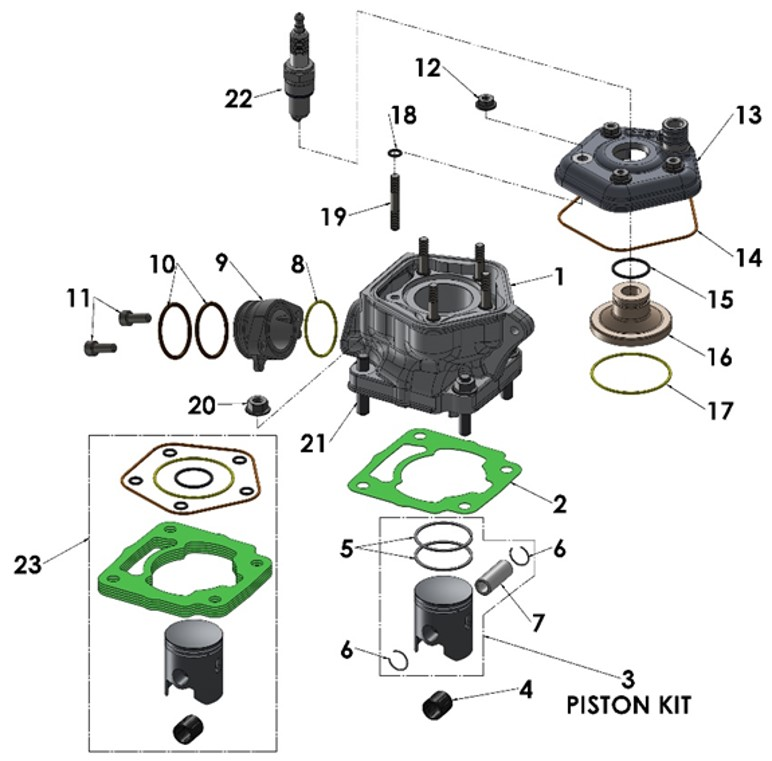

2026 Cobra CX50 SRx FWE - ENGINE - TOP END

1. CYLINDER KIT - FWE 2024

1. CYLINDER KIT - 60CC MOD KIT - NO WRIST PIN BEARING OR BASE GASKETS (Replaces EKCSMO01, EKCSMO11)

2A. BASE GASKET - 0.2MM - CX50 WIDE BASE

2B. BASE GASKET - 0.3MM - CX50 WIDE BASE

2C. BASE GASKET - 0.4MM - CX50 WIDE BASE

2D. BASE GASKET - 0.5MM - CX50 WIDE BASE

2E. BASE GASKET - 0.6MM - CX50 WIDE BASE

3. PISTON KIT-39MM NON-BRIDGED A

3B. PISTON KIT-39MM NON-BRIDGED B

3C. PISTON KIT-39MM NON-BRIDGED C

3D. PISTON KIT-39MM NON-BRIDGED D

4. BEARING - WRIST PIN FOR 50CC

5. RING SET 39MM 50CC

6. CIRCLIP - PAIR - 39MM PISTON

7. WRIST PIN - 50CC

8. O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP

9. FLANGE - EXHAUST CX50 & 65 2026 -

10. O-RING - EXHAUST FLANGE

11. M6 X 12 SHCS ZINC

12. 6MM FLANGE NUT-ZINC - CLASS 10

13. CYLINDER HEAD OUTER - 65CC & VENOM

14. O-RING - CYL HEAD LARGE - 65CC & VENOM

15. ORING - HEAD INSERT - VITON

16. INSERT - CYLINDER HEAD - 2018 - CURRENT FWE 2026 JR & KG

17. O-RING - HEAD - MEDIUM 50CC

18. O-RING 6.07X1.78 SILICONE

19. STUD - CYLINDER HEAD 6MM X 41MM

20. 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS

21. STUD - CYLINDER 8MM X 44.5MM

22. SPARK PLUG - NGK BPR8ES

23A. REBUILD KIT - TOP END - VENOM ENGINE - A PISTON

23B. REBUILD KIT - TOP END - VENOM ENGINE - B PISTON

23C. REBUILD KIT - TOP END - VENOM ENGINE - C PISTON

23D. REBUILD KIT - TOP END - VENOM ENGINE - D PISTON

ACCESSORY. ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM

GASKET KIT. COMPLETE - 2024 - 50CC VENOM
