Cobra Moto

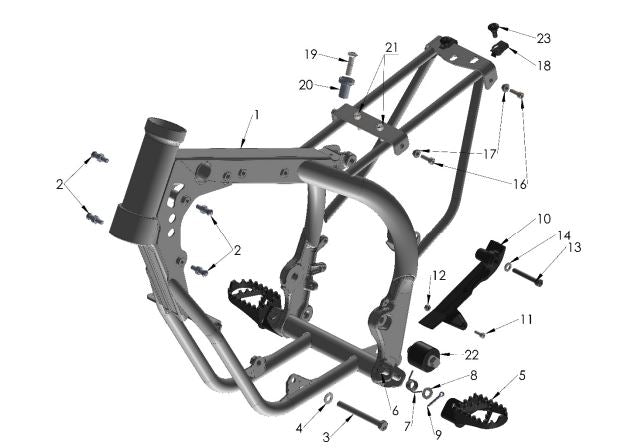

2025 Cobra CX3e - FRAME
2025 Cobra CX3e - FRAME
1. FRAME - CX3E - 2025 - CALL TO ORDER
FACE32025
$641.96
2. POST - SIDE LOUVER
FCCE50015
$14.88
3. M8 X 80 HH ZINC
HCBH0880
$6.66
4. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6MM O.D.
HCWF0802
$0.53
5. ULTRAWIDE FOOTPEG KIT 50cc / 65cc
TCMU0139
$77.76
6. CLEVIS PIN - FOOTPEG
FCMU0031
$4.32
7. SPRING - FOOTPEG ULTRA WIDE
TCC60012
$5.43
8. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6MM O.D.
HCWF0802
$0.53
9. COTTERPIN - 1/8` X 3/4` 316 STAINLESS
HCCP0008
$0.53
10. CHAIN SLIDE - MOLDED - UPPER - EMOTO 1.0KW
FCCEMU001
$15.88
11. M4 x 0.7 x 12 - SHCS - ZINC
HCBC0412
$1.09
12. 4MM LOCK NUT
HCNL0401
$1.09
13. M8X45 SHCS
HCBC0845
$0.00
16. M5 x 0.8 x 16 - SHCS - DIN 912 - ISO 4792 - CL12.9
HCBC0516
$1.09
17. WASHER - 5MM BODY PANEL
TCC60017
$4.32
18. 6MM CLIP NUT-PLASTIC/PIPE MNT.
HCHA0003
$2.20
19. 7MM TORX FLAT HEAD
HCSP0701
$2.76
20. BUSHING - MOUNT - REAR TANK AND SEAT - E3/JR 2025
TCMU0068
$8.68
21. M6 X 20 SHCS ZINC
HCBC0620
$1.09
22. CHAIN ROLLER W BOLT BEARING & SEALS
FCC60020
$18.34
23. BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR
HCSP0610
$3.20
