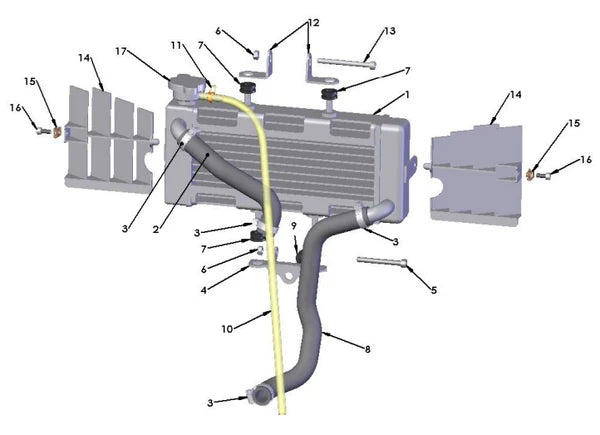

2024 Cobra CX50 JR - COOLING SYSTEM
2024 Cobra CX50 JR - COOLING SYSTEM
1. RADIATOR - JR/P3 2017 - 2024
FACJ0005
$205.73
2. HOSE - RADIATOR - LEFT SIDE - VENOM JR 2018
FCCJ0046
$22.24
3. HOSE CLAMP (14 - 27MM)
MCMUCL07
$2.76
4. BRACKET ASSY BOTTOM RAD - JR/P3
EACJ0001
$22.12
5. M6 X 55 SHCS ZINC (Replaces HCBC0608)
HCBC0655
$1.09
6. M6 LOCKNUT
HCNL0601
$1.09
7. GROMMET-UNIVERSAL-COBRA
MCKGGR00
$2.20
8. HOSE - RADIATOR - RIGHT SIDE - VENOM ENGINE
FCCJ0029
$22.24
9. GROMMET-UNIVERSAL-COBRA
MCKGGR00
$2.20
10. HOSE RADIATOR OVERFLOW JR/P3
FCMU0049
$11.88
11. CLAMP-CARB HOSE 10MM
MCMUCL05
$0.53
12. MOUNT - RADIATOR UPPER - JR/P3
ECHA0109
$8.77
13. M6 X 65 SHCS ZINC
HCBC0665
$1.54
14. LOUVERS SET RADIATOR LEFT & RIGHT
FCCJ0002
$25.46
15. 5MM EXTRUDED ``U`` NUT
HCCN0000
$2.09
16. M5 x 0.8 x 12 - SHCS - ZINC (Replaces HCBC0501)
HCBC0512
$1.09
17. RADIATOR CAP 1.3 BAR - WITH RIBS
FCMU0052
$17.67
TOOL 1. TOOL - RADIATOR CAP REMOVAL
MCMUTL16
$22.24
