Cobra Moto

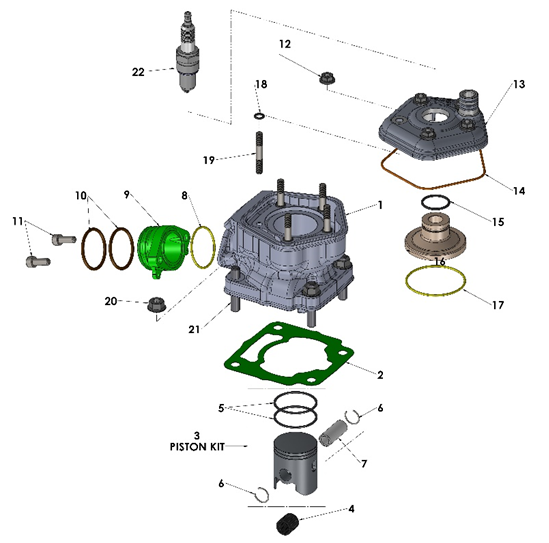

2023 CX50 JR - ENGINE - TOP END

2023 CX50 JR - ENGINE - TOP END

1. CYLINDER KIT - VENOM - 2020 COOLER
EKMU0361
$510.64
2. BASE GASKET - 0.2MM - CX50 VENOM
ZCMU0102
$9.21
2. BASE GASKET - 0.3MM - CX50 VENOM
ZCMU0103
$9.21
2. BASE GASKET - 0.4MM - CX50 VENOM
ZCMU0104
$9.21
2. BASE GASKET - 0.5MM - CX50 VENOM
ZCMU0105
$9.21
2. BASE GASKET - 0.6MM - CX50 VENOM
ZCMU0106
$9.21
2. BASE GASKET - 0.8MM - CX50 VENOM
ZCMU0108
$9.21
3. PISTON KIT-39MM NON-BRIDGED A
ECMU0276A
$104.47
4. BEARING - WRIST PIN FOR 50CC
ECMU0077
$16.67
5. RING SET 39MM 50CC
ECMU0155
$32.14
6. CIRCLIP - PAIR - 39MM PISTON
ECMUSR00
$4.43
7. WRIST PIN - 50CC
ECKG0012
$17.22
8. O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP
ZCMUOR07
$4.43
9. FLANGE - EXHAUST CX50 VENOM & 65 2017-2025
ECMU0262
$49.94
10. O-RING - EXHAUST FLANGE
ZCMOTE11
$3.20
11. M6 X 12 SHCS ZINC
HCBC0612
$1.09
12. 6MM FLANGE NUT-ZINC - CLASS 10
HCNF0601
$0.64
13. CYLINDER HEAD OUTER - 65CC & VENOM
ECC60149
$98.90
14. O-RING - CYL HEAD LARGE - 65CC & VENOM
ZCC60009
$7.65
15. ORING - HEAD INSERT - VITON
ZCMUOR23
$4.98
16. INSERT - HEAD - VENOM CX50 - 2017
ECMU0279
$98.90
17. O-RING - HEAD - MEDIUM 50CC
ZCMUOR05
$8.88
18. O-RING 6.07X1.78 SILICONE
ZCMUOR03
$1.09
19. STUD - CYLINDER HEAD 6MM X 41MM
ECC60107
$5.43
20. 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS
HCNF0801
$1.09
21. STUD - CYLINDER 8MM X 44.5MM
ECC60109
$7.21
22. SPARK PLUG - NGK BPR8ES (Replaces ECMU0010C)
ECMU0151
$7.88
ACCESSORY 1. ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM
ZKMUOR13
$16.11
COMPLETE ENGINE. ENGINE - 2020 - 2024 - CX50JR/P3 - VENOM - CALL TO ORDER
EACJ2020
$1,898.88
TOOL 1. TOOL - PISTON STOP
MCMUTL03
$16.88
