Cobra Moto

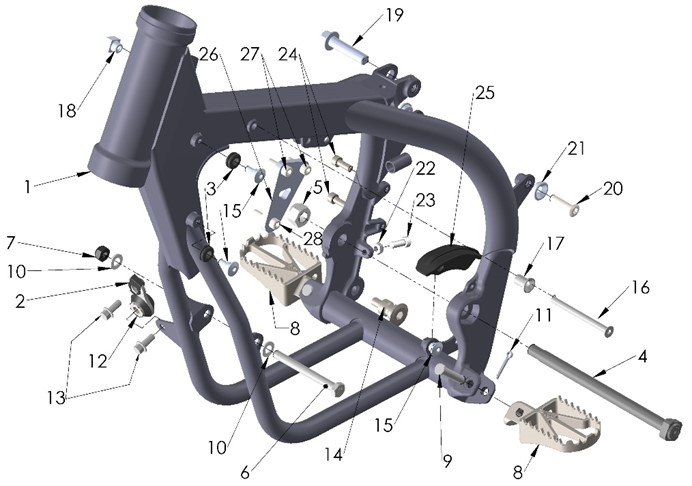

2023 Cobra CX50 SRx FWE - FRAME

2023 Cobra CX50 SRx FWE - FRAME

1. FRAME - 2022 -2023 - CX50 FWE KING VENOM - CALL TO ORDER
FACS2022
$664.21
2. 6MM CLIP NUT-PLASTIC/PIPE MNT.
HCHA0003
$2.20
3. GROMMET - RADIATOR MOUNT - 50SR/65
MCMUGR12
$4.98
4. BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER
GCMU0021
$143.42
5. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
6. M8 X 80 HH ZINC
HCBH0880
$6.66
7. M8 LOCKNUT 8MM TALL
HCNL0803
$2.20
8. ULTRAWIDE FOOTPEG KIT 50cc / 65cc
TCMU0139
$77.76
9. CLEVIS PIN - FOOTPEG
FCMU0031
$4.32
10. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
11. COTTERPIN - 1/8` X 3/4` 316 STAINLESS
HCCP0008
$0.53
12. ISOLATION MOUNT
XCMU0033
$18.34
13. M6 X 16 FLANGED HD HEX 8MM ZINC
HCBF0616
$1.09
14. PIVOT BOLT - ALUM BRAKE PEDAL
BCMU0027
$22.12
15. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
16. M6 X 75 FLAT HEAD W ZINC
HCFH0675
$1.09
18. BUSHING-MOUNTING - FLAT HEAD FASTENER
TCMU0047
$7.65
19. BUSHING - TANK MOUNT - SQUARE THREADED NUT
TCMU0017
$9.88
20. M10 X 39 FLANGE HEAD - SHOCK BOLT (Replaces HCBF1040)
HCBF1039
$12.11
21. 7MM TORX FLAT HEAD
HCSP0701
$2.76
22. COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021
FCMU0109
$10.55
23. M6 X 25 SHCS ZINC
HCBC0625
$1.09
24. M6 X 20 SHCS ZINC
HCBC0620
$1.09
25. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
26. CHAIN SLIDE - LOWER - 65/KING 2021
TCMU0044
$16.56
27. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
28. M6 X 25 SHCS ZINC
HCBC0625
$1.09
29. M6 LOCKNUT
HCNL0601
$1.09
ACCESSORY 1. SPRING - FOOTPEG ULTRA WIDE
TCC60012
$5.43
NOT SHOWN1. WASHER - CHAIN SLIDER AND FORK GUARD
TCC60019
$2.76
