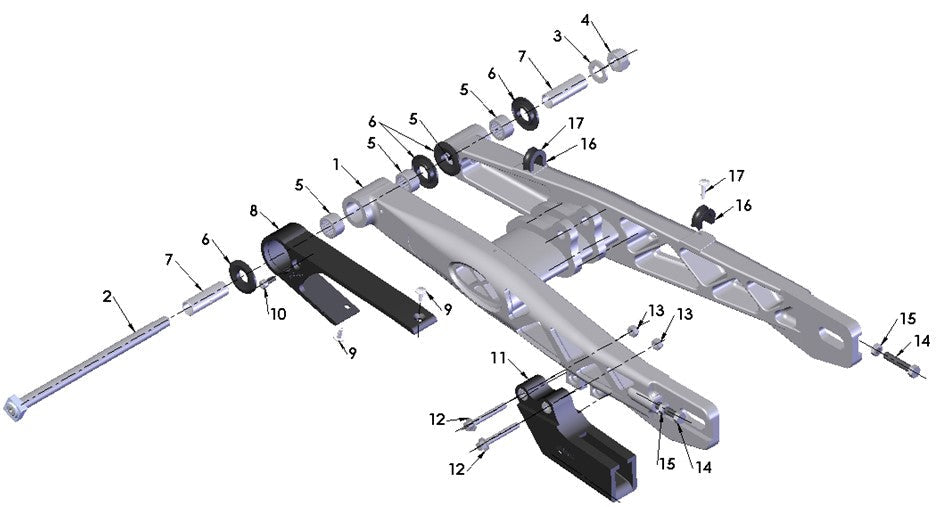

2022 Cobra CX65 - SWINGARM ASSEMBLY

1. SUPERCEDED BY PART NUMBER GAC62025 SWINGARM - FORGED - 2025 - CONSULT TSB0425 IF UPGRADING

2. BOLT - TITANIUM - SWINGARM PIVOT - CX65

3. 12MM FLAT WASHER

4. M12-1.25 LOCKNUT FINE THREAD

5. BEARING - DRAWN CUP CAGED NEEDLE - SWINGARM PIVOT - 15 22 12

6. SEAL THRUST BEARING - SWINGARM PIVOT CX65

7. SPACER TUBE - SWINGARM PIVOT

8. GUARD - CHAIN (TOP) - FOR SWINGARM

9. M5 X 16 FLAT HEAD

10. M5 x 0.8 x 12 - SHCS - ZINC (Replaces HCBC0501)

11. CHAIN GUIDE (BOTTOM) CX65

12. M6 X 40 FLANGE HD HEX 8MM ZINC

13. M6 LOCKNUT

14. M7 X 35 HH ZINC

15. 7MM NUT

16. GUIDE - REAR BRAKE HOSE

17. #8X3/4 SELF TAPPING SCREW

18. GREASE FITTING SMALL - ZERK
