Cobra Moto

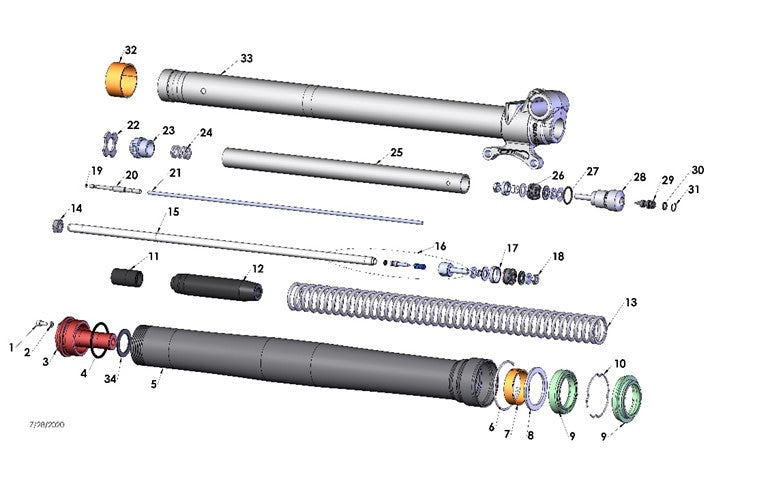

2022 Cobra CX65 - FORK - LEG ASSEMBLY - BRAKE SIDE
2022 Cobra CX65 - FORK - LEG ASSEMBLY - BRAKE SIDE
1. M4 x 0.7 x 8 - SHCS - ZINC
HCBC0408
$1.09
2. GASKET - BLEED SCREW FORK
ZCKG0001
$2.88
3. FORK CAP BRAKE SIDE 37MM
KCC60044L
$96.23
4. O-RING 37MM FORK CAP
ZCC60011
$2.76
5. FORK - OUTER TUBE 37MM
KCC60037
$232.44
6. RING CLIP - FORK OUTER WEAR 37MM
KCC60043
$5.43
7. FORK GLIDE RING BOTTOM 37MM
KCC60041
$14.33
8. SPACER - FORK SEAL - 37MM
KCC60047
$7.65
9. FORK SEAL & SWIPER KIT 37MM - SKF
KCC60039
$41.04
10. RING CLIP - FORK SEAL RETAINER 37MM
KCC60066
$5.43
11. FORK - JOUNCE BUMPER
KCC60067
$8.32
12. GUIDE - FORK SPRING - 37MM
KCC60064
$22.24
13A. SPRING - FORK .26 KG/MM (SINGLE)
KCC63726
$48.88
13B. SPRING - FORK .24 KG/MM (SINGLE)
KCC63724
$48.88
13C. SPRING - FORK .28 KG/MM (SINGLE)
KCC63728
$48.88
14. NUT JAM 3/8-24 CLASS 8
HCNJ3824
$3.32
15. FORK - RING CLIP - SPRING GUIDE RETAINER
KCC60068
$4.76
16. DAMPER ROD ASSEMBLY 37MM
KAC60003
$98.46
17. FORK - MID VALVE GLIDE RING
KCCS0018
$9.88
18. 6MM JAM NUT
HCNJ0601
$1.09
19. ORING - 2.1MM ID - 1MM - BUNA
BCKG0033
$2.20
20. FORK ADJUSTMENT SCREW TOP - LONG
KCC60052
$51.72
21. FORK ADJUSTER PIN
KCC60049
$19.90
22. PERCH - FORK SPRING - HARDENED - 37MM
KCC60042
$9.43
23. FORK - CARTRIDGE CAP
KCMU0013
$32.14
24. FORK - TOP OUT SPRING
KCKG0050
$8.77
25. CARTRIDGE TUBE - JR KG 65 FORKS - ALUM
KCKG0019
$49.94
26. O-RING - FORK - BASE VALVE & COMP ADJ
KCMU0021
$1.09
27. O-RING FORK BOTTOM PLUG
ZCKGB017
$2.20
28. FORK - BOTTOM PLUG - ADJUSTABLE COMPRESSION
KCC60069
$76.20
29. FORK BOTTOM PLUG ADJUSTMENT SCREW
KCC60048
$33.25
30. O-RING 6.07X1.78 SILICONE
ZCMUOR03
$1.09
31. RING CLIP - FORK ADJUSTMENT SCREW BOTTOM
KCC60065
$2.76
32. FORK GLIDE RING TOP 37MM
KCC60036
$14.33
33. FORK LOWER COMPLETE BRAKE SIDE - 37MM
KAC60001
$236.31
34. NLA OBSOLETE - FORK SPRING PAD 37MM
KCC60053
$6.54
TOOL. TOOL - FORK SEAL SWIPER DRIVER - 37MM
MCMUTL38
$65.63
TOOL. TOOL - FORK CAP WRENCH - 37MM
MCMUTL37
$11.12
TOOL. TOOL - CARTRIDGE TUBE WRENCH
MCMUTL04
$49.94
