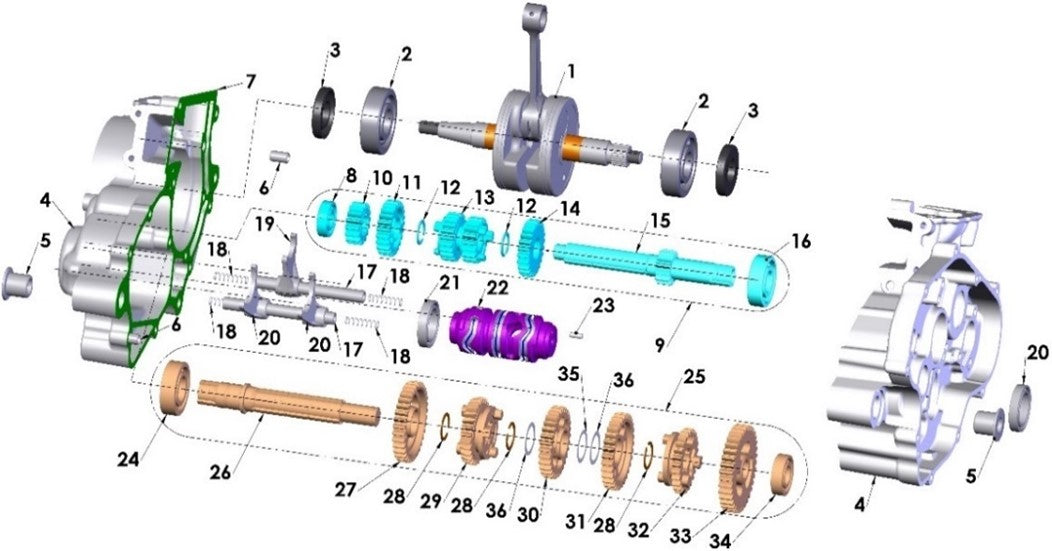

2022 Cobra CX65 - ENGINE - TRANSMISSION
2022 Cobra CX65 - ENGINE - TRANSMISSION
1. CRANKSHAFT 65 2015 & LATER (Replaces ECC60219)
ECC60188
$445.88
2. BEARING - CRANKSHAFT - C4
ECR60007
$38.81
3. SEAL - CRANKSHAFT
ECDC0024
$10.33
5. BUSHING - ENGINE PIVOT - 12MM
ECC60028
$13.22
6. DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215
ECMU0122
$2.20
7. GASKET - CENTERCASE PV 2015 CX65
ZCC60014
$15.56
8. BEARING 6001 NO SEALS
ECKG0031
$9.88
9. PRIMARY SHAFT SUB-ASSY - 2016
EAC60041
$277.42
10. GEAR - 2ND INPUT 16T INVOLUTE
ECC60306
$51.05
11. GEAR - 5TH INPUT 23T
ECDC0005
$51.05
12. SNAP RING - EXT 17MM
ECDC0003
$2.20
13. GEAR - 3/4TH INPUT 18/21T - INVOLUTE
ECC60304
$71.53
14. GEAR - 6TH INPUT 24T
ECDC0002
$55.50
15. SHAFT - TRANS INPUT - INVOLUTE
ECC60301
$110.03
16. BEARING - 50CC CRANKSHAFT & 65CC TRANS
ECMU0016
$22.12
17. ROD - SHIFTER - HOLLOW (USE WITH ECC60071 SPRING)
ECC60070
$16.56
18. SPRING - SHIFTER ROD
ECC60071
$5.43
19. SHIFT FORK - INPUT
ECDC0048
$54.39
20. SHIFT FORK - OUTPUT 3 PAD
ECC60256
$59.98
21. BEARING - SHIFT DRUM
ECDC0022
$22.12
22. SHIFT DRUM - MACHINED - 2015 & NEWER
ECC60186
$143.42
23. DOWEL PIN 4X16.0
ECDC0051
$2.20
24. BEARING OUTPUT- 50 & 65
ECKGBR01
$29.91
25. GEAR - 2ND OUTPUT 34T 4 DOG SQUARE
EAC60042
$356.38
27. GEAR - 2ND OUTPUT 34T 4 DOG SQUARE
ECC60114
$58.40
28. SNAP RING - EXT 18MM HEAVY DUTY
ECDC0017
$2.76
30. GEAR - 4TH OUTPUT 30T 4 DOG SQUARE - POLISHED
ECC60111M
$58.40
31. GEAR - 3RD OUTPUT 31T 4 DOG SQUARE
ECC60110
$58.40
33. GEAR - 1ST OUTPUT 37T 4 DOG SQUARE
ECC60116
$58.40
34. BEARING - OUTPUT
ECDC0021
$27.68
35. SHIM - TRANSMISSION - 26 x 0.2 x 20
ECC60160
$1.91
36. SHIM - TRANSMISSION - 25 x 0.5 x 20
ECC60161
$1.91
ACCESSORY. KIT - CONNECTING ROD -90MM MANUAL W PIN AND BIG END BEARINGS
EKC60007
$92.23
ACCESSORY 2. SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15
ECMU0040
$2.76
ACCESSORY 3. SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15
ECMU0040T
$2.76
CASE SCREWS - LONG. M6 X 35 SHCS ZINC (Replaces HCBC0604)
HCBC0635
$1.09
CASE SCREWS - SHORT. M6 X 30 SHCS ZINC (Replaces HCBC0603)
HCBC0630
$1.09
ENGINE. NLA OBSOLETE - ENGINE - 2021 CX65 PV
EAC62021
$2,724.13
