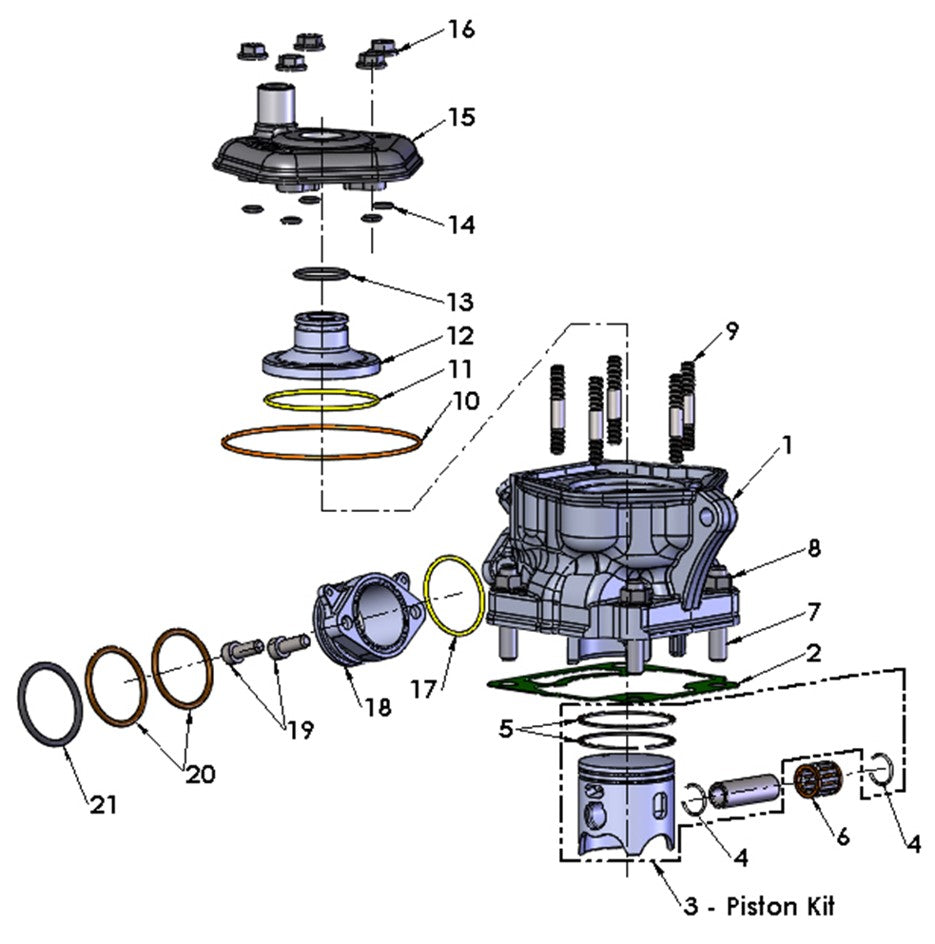

2022 Cobra CX65 - ENGINE - TOP END

2022 Cobra CX65 - ENGINE - TOP END

1. CYLINDER KIT - CX65 - 2022
ECC60557
$644.18
2-2. GASKET - 0.2MM - CYLINDER BASE - 65CC 2013 - 2023
ZCC60302
$12.11
2-3. GASKET - 0.3MM - CYLINDER BASE - 65CC 2013 - 2023
ZCC60303
$12.11
2-4. GASKET - 0.4MM - CYLINDER BASE - 65CC 2013 - 2023
ZCC60304
$12.11
2-5. GASKET - 0.5MM - CYLINDER BASE - 65CC 2013 - 2023
ZCC60305
$12.11
2-6. GASKET - 0.6MM - CYLINDER BASE - 65CC 2013 - 2023
ZCC60306
$12.11
2-7. 0.7MM GASKET
ZCC60307
$12.11
2-8. GASKET - 0.8MM - CYLINDER BASE - 65CC 2013 - 2023
ZCC60308
$12.11
3B. WRIST PIN - PISTON - CAST 44.5MM 65
ECC60208WP
$18.88
3A. PISTON KIT 65 44.5MM BORE SIZE A- NON BRIDGED
ECC60208A
$110.03
4. CIRCLIP - PAIR - CAST PISTON - 44.5MM
ECC60222
$4.43
5. RINGS - FOR CAST PISTON - 44.5
ECC60221
$32.14
6. BEARING - WRISTPIN 65CC
ECDC0061
$14.11
7. STUD - CYLINDER 8MM X 44.5MM
ECC60109
$7.21
8. 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS
HCNF0801
$1.09
9. STUD - CYLINDER HEAD 6MM X 41MM
ECC60107
$5.43
10. O-RING - CYL HEAD LARGE - 65CC & VENOM
ZCC60009
$7.65
11. O-RING - HEAD - MEDIUM 50CC
ZCMUOR05
$8.88
12. CYLINDER HEAD INSERT - 2015 & LATER
ECC60207
$105.58
13. ORING - HEAD INSERT - VITON
ZCMUOR23
$4.98
14. O-RING 6.07X1.78 SILICONE
ZCMUOR03
$1.09
15. CYLINDER HEAD OUTER - 65CC & VENOM
ECC60149
$98.90
16. 6MM FLANGE NUT-ZINC - CLASS 10
HCNF0601
$0.64
17. O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP
ZCMUOR07
$4.43
18. FLANGE - EXHAUST CX50 VENOM & 65 2017-2025
ECMU0262
$49.94
19. M6 X 12 SHCS ZINC
HCBC0612
$1.09
20. O-RING - EXHAUST FLANGE
ZCMOTE11
$3.20
21. O`RING - EXHAUST PIPE CUSHION - CX65
ZCMUOR11
$2.54
NOT SHOWN. ENGINE - 2022 CX65 PV - CALL TO ORDER
EAC62022
$2,920.88
KIT 1. ORING KIT - TOP END - FANG VALVE 65
ZKMUOR14
$16.81
