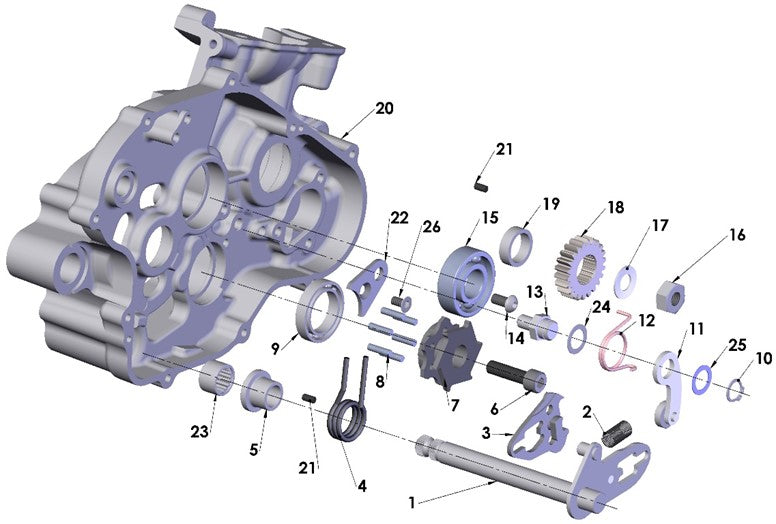

2022 COBRA CX65 - ENGINE - SHIFT MECHANISM
2022 COBRA CX65 - ENGINE - SHIFT MECHANISM
1. SHIFTER SHAFT W/ PIVOT PLATE - 2015 - 2023
EAC60017
$98.24
2. SHIFTER SPRING
ECDC0055
$13.88
3. SHIFT SLIDING PLATE - 2015 & NEWER
EAC60018
$61.07
4. SPRING - SHIFT SHAFT CENTERING - 2015 - CURRENT
ECC60124
$15.44
5. SPACER SHIFT SHAFT SPRING CENTERING
ECC60146
$6.09
6. 8 X 30 SHCS ZINC (Replaces HCBC0806)
HCBC0830
$1.09
7. CASSETTE - SHIFTING - 2015-CURRENT
ECC60189
$55.50
8. DOWEL PIN 4X16.0
ECDC0051
$2.20
9. BEARING - SHIFT DRUM
ECDC0022
$22.12
10. SNAP RING - EXT 12MM-GEAR RET
ECDC0035
$2.20
11. ASSY - SHIFT FOLLOWER ARM AND ROLLER
ECMU0545
$27.68
12. SPRING FOLLOWER ARM
ECMU0546
$9.43
13. PIVOT - FOLLOWER ARM
ECC60096
$21.01
14. M6 X 12 BUTTON HEAD BLACK OXIDE
HCBB1612
$1.09
15. BEARING - 50CC CRANKSHAFT & 65CC TRANS
ECMU0016
$22.12
16. 10MM X 1.25 NUT
HCNS1001
$1.09
17. BELLVILLE - LOCK WASHER - 10MM
ECDC0030
$3.20
18. CRANK DRIVE GEAR
ECDC0073
$32.14
19. SPACER - CRANK DRIVE GEAR - CX65 2015
ECC60198
$10.99
21. DOWEL PIN 4X8.0
ECDC0053
$3.32
22. RETAINER - SHIFT DRUM BEARING
ECC60199
$10.88
23. BEARING TRANS. PRECISION NEEDLE
ECMU0020
$16.56
24. SHIM WASHER 18 x 0.5 x 12
ECC60119
$2.20
25. A SHIM WASHER 18 x 0.2 x 12
ECC60152
$2.20
25 B. SHIM WASHER 18 x 0.3 x 12
ECC60153
$2.20
26. M5 X 12 FLAT HEAD ZINC
HCFH0512
$1.09
NOT SHOWN. BUSHING - ENGINE PIVOT - 12MM
ECC60028
$13.22
