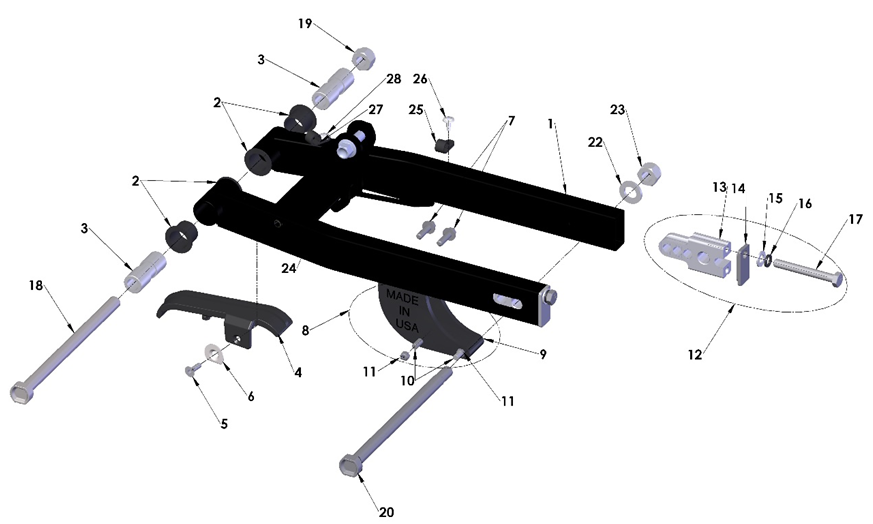

2022 Cobra CX50 JR - SWINGARM ASSEMBLY
2022 Cobra CX50 JR - SWINGARM ASSEMBLY
1. SWINGARM - BLACK - WELDED ASSY - CM/P3 2017
GAMU2017B
$194.60
2. SWINGARM BUSHING 1-INDIVIDUAL
GCMU0001
$10.55
3. SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER
GCCS0001
$13.67
4. SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT
GCMU0041
$16.56
5. M5 X 12 FLAT HEAD ZINC
HCFH0512
$1.09
6. 5MM FLAT WASHER
HCWF0501
$0.53
7. M6 X 20 FLANGE HD HEX 8MM ZINC 8.8
HCBF0620
$1.09
8. CHAIN BLOCK ASSY
PAKG0001
$30.02
9. KIT - CHAIN GUIDE BOTTOM - SIDE - HARDWARE
PKMU0001
$14.99
10. M6 X 35 FLAT HEAD
HCBFT635
$1.09
11. M6 LOCKNUT
HCNL0601
$1.09
12. WHEEL PULL ASSEMBLY
FAMU0005
$32.25
13. WHEEL PULL
FCMU0203
$24.35
14. ENDCAP - WHEEL PULL - KING & CM
FCMU0202
$8.77
15. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D.
HCWF0802
$0.53
16. 8MM LOCK WASHER STANDARD
HCWL0801
$0.53
17. M8 X 65 HH FULL THREADS ZINC
HCBH1865
$1.54
18. M12 X 195MM AXLE / PIVOT BOLT
WCMU0016
$32.14
19. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
20. M12 X 195MM AXLE / PIVOT BOLT
WCMU0016
$32.14
22. M12-1.25 LOCKNUT FINE THREAD
HCWF1202
$0.53
23. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
24. M10 X 39 FLANGE HEAD - SHOCK BOLT
HCBF1039
$12.11
25. CABLE CLAMP-7/16 INCH BLACK
HCCC0006
$1.09
26. #8X1/2 SELF TAPPING SCREW
HCPP0832
$1.09
27. GUIDE - REAR BRAKE HOSE
HCCC0005
$5.88
28. #8X3/4 SELF TAPPING SCREW
HCPP0834
$1.09
