Cobra Moto

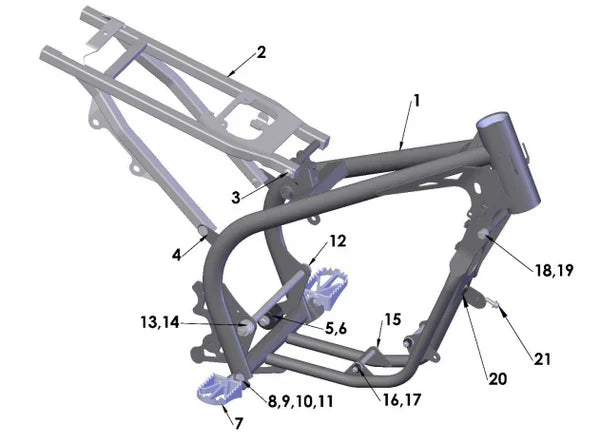

2021 Cobra CX65 - FRAME
2021 Cobra CX65 - FRAME
1. FRAME CX65 2019 - CALL TO ORDER
FAC62019G
$777.71
2. SUBFRAME CX65 2010-CURRENT
FAC60016
$165.67
3. M8 X 35 BUTTON HEAD ZINC
HCBB0835
$1.09
4. 8 X 25 FLAT HEAD
HCFH0825
$1.09
5. CHAIN ROLLER W BOLT BEARING & SEALS
FCC60020
$18.34
6. BANJO WASHER 10MM ID
BCDC0153
$1.09
7. ULTRAWIDE FOOTPEG KIT CX65
TCMU0139
$77.76
8. SPRING - FOOTPEG ULTRA WIDE
TCC60012
$5.43
9. CLEVIS PIN - FOOTPEG
FCMU0031
$4.32
10. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
11. COTTERPIN - 1/8` X 3/4` 316 STAINLESS
HCCP0008
$0.53
12. BOLT - TITANIUM - SWINGARM PIVOT - CX65
GCC60020
$143.42
13. 12MM FLAT WASHER
HCWF1202
$0.53
14. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
15. M8 X 65 HH ZINC
HCBH0865
$1.54
16. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
17. M8 LOCKNUT 8MM TALL
HCNL0803
$2.20
18. M8 X 20 HH ZINC
HCBH0807
$1.09
19. 8MM NUT
HCNS0801
$0.64
20. 6MM CLIP NUT-PLASTIC/PIPE MNT.
HCHA0003
$2.20
21. M6 X 16 FLANGED HD HEX 8MM ZINC
HCBF0616
$1.09
NOT SHOWN. ZIP TIP 8` FRAME MOUNTED
MCMUZT28
$1.40
