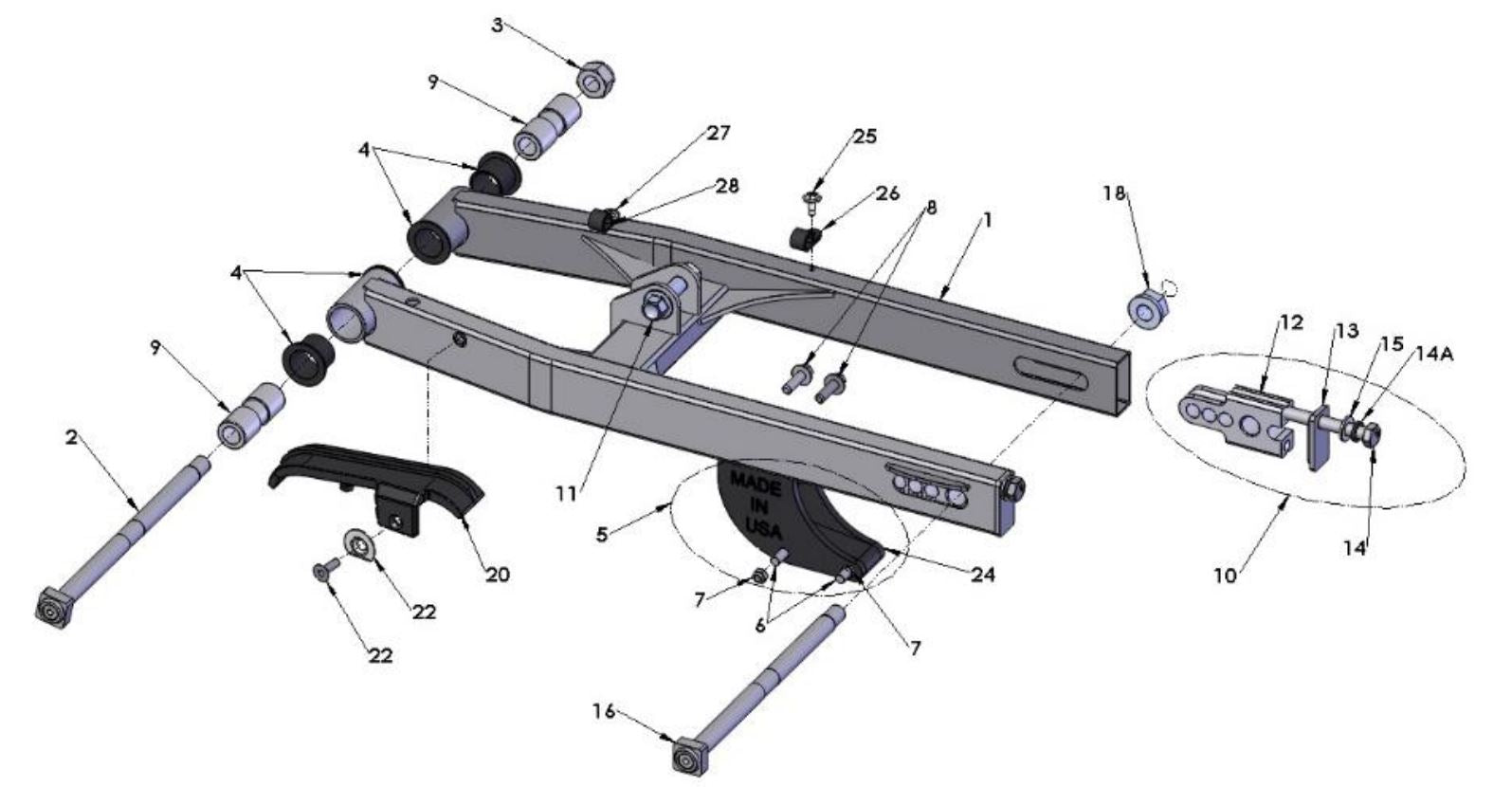

2020 Cobra CX50 FWE - SWINGARM ASSEMBLY
2020 Cobra CX50 FWE - SWINGARM ASSEMBLY
1. SWINGARM - BLACK - WELDED ASSY EXTENDED FWE
GACSBW10B
$265.82
2. BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50
GCMU0020
$143.42
3. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
4. SWINGARM BUSHING 1-INDIVIDUAL
GCMU0001
$10.55
5. CHAIN GUIDE ASSY - 50s AND MICRO e
PAMU0001
$49.98
6. M6 X 35 FLAT HEAD
HCBFT635
$1.09
7. M6 LOCKNUT
HCNL0601
$1.09
8. M6 X 20 FLANGE HD HEX 8MM ZINC 8.8
HCBF0620
$1.09
9. SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER
GCCS0001
$13.67
10. WHEEL PULL ASSEMBLY
FAMU0005
$32.25
11. M10 X 39 FLANGE HEAD - SHOCK BOLT (Replaces HCBF1040)
HCBF1039
$12.11
12. WHEEL PULL
FCMU0203
$24.35
13. ENDCAP - WHEEL PULL - KING & CM
FCMU0202
$8.77
14. M8 X 65 HH FULL THREADS ZINC
HCBH1865
$1.54
14A. 8MM LOCK WASHER STANDARD
HCWL0801
$0.53
15. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
16. BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50
GCMU0020
$143.42
18. NUT - 12MM ACORN - ALUM
WCMU0038
$20.79
20. SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT
GCMU0041
$16.56
21. M5 X 16 FLAT HEAD
HCFH0516
$1.09
22. WASHER - RETAINING - SWINGARM GUARD
GCMU0038
$4.32
23. M5 LOCKNUT
HCNL0501
$1.09
24. KIT - CHAIN GUIDE BOTTOM - SIDE - HARDWARE
PKMU0001
$14.99
25. CABLE CLAMP-7/16 INCH BLACK
HCCC0006
$1.09
26. #8X1/2 SELF TAPPING SCREW
HCPP0832
$1.09
27. GUIDE - REAR BRAKE HOSE
HCCC0005
$5.88
28. #8X3/4 SELF TAPPING SCREW
HCPP0834
$1.09
