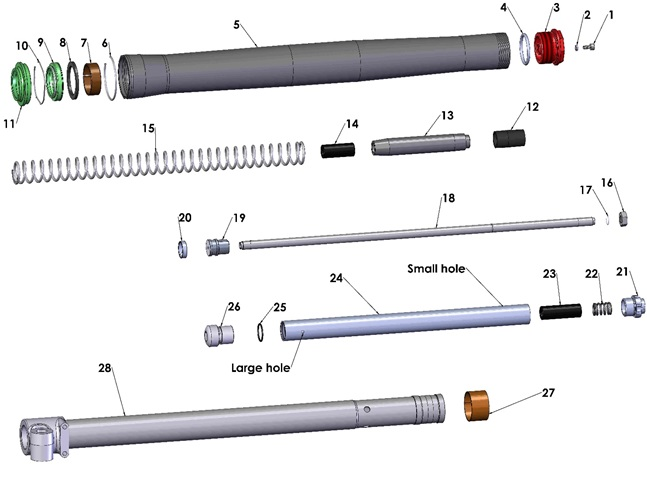

2019 Cobra CX50 P3 - FORKS - LEG ASSEMBLY
2019 Cobra CX50 P3 - FORKS - LEG ASSEMBLY
1. M4 x 0.7 x 8 - SHCS - ZINC
HCBC0408
$1.09
2. GASKET - BLEED SCREW FORK
ZCKG0001
$2.88
3. FORK CAP - NON ADJUSTABLE - 32MM USD
KCCL0001
$87.89
4. O-RING - 3MM X 27MM ID
ZCMUOR18
$2.20
5. FORK - OUTER TUBE 32MM
KCCS0005
$220.86
6. FORK - RING CLIP - OUTER WEAR 32MM
KCCS0035
$5.43
7. FORK - GLIDE RING BOTTOM 32MM
KCCS0006
$14.33
8. SPACER - FORK SEAL- 32MM
KCCS0032
$7.65
9. FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)
KKCS0004
$39.93
10. FORK - SEAL RETAINER RING CLIP - 32MM
KCCS0002
$6.54
11. FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)
KKCS0004
$39.93
12. FORK - JOUNCE BUMPER
KCC60067
$8.32
13. GUIDE - FORK SPRING - 32MM
KCCS0013
$22.12
14. SPACER - SPRING GUIDE EXTEND
KCCL0002
$13.33
15A. SPRING - FORK 0.21 KG/MM - 32MM JR/P3
KCCJ3221
$48.88
15B. SPRING - FORK 0.18 KG/MM - 32MM JR/P3
KCCJ3218
$48.88
15C. SPRING - FORK 0.25 KG/MM - 32MM JR/P3
KCCJ3225
$48.88
16. NUT JAM 3/8-24 CLASS 8
HCNJ3824
$3.32
17. FORK - RING CLIP - SPRING GUIDE RETAINER
KCC60068
$4.76
18. DAMPER TUBE - FORK - ADJUSTABLE
KCMU0024
$47.83
19. FORK - DAMPER CAP W PISTON - P3
KCCL0003
$27.68
20. FORK - MID VALVE GLIDE RING
KCCS0018
$9.88
21. FORK - CARTRIDGE CAP
KCMU0013
$32.14
22. FORK - TOP OUT SPRING
KCKG0050
$8.77
23. FORK - TRAVEL LIMITER SPACER
KCCJ0002
$15.44
24. FORK - CARTRIDGE TUBE - P3
KCCL0005
$49.94
25. O-RING FORK BOTTOM PLUG
ZCKGB017
$2.20
26. FORK - BOTTOM PLUG - SMART LEG
KCC60057
$32.14
27. FORK - GLIDE RING TOP 32MM
KCCS0007
$14.33
28A. FORK LOWER COMPLETE BRAKE SIDE - BLACK - HOLLOW AXLE
KAMU0003BLK
$216.86
28B. FORK LOWER COMPLETE NON-BRAKE SIDE - HOLLOW AXLE
KAMU0004
$216.86
TOOL. TOOL - FORK SEAL SWIPER DRIVER - 32MM
MCMUTL39
$61.18
TOOL. TOOL - FORK CAP WRENCH - 32MM
MCMUTL32
$17.67
TOOL. TOOL - CARTRIDGE TUBE WRENCH
MCMUTL04
$49.94
