Cobra Moto

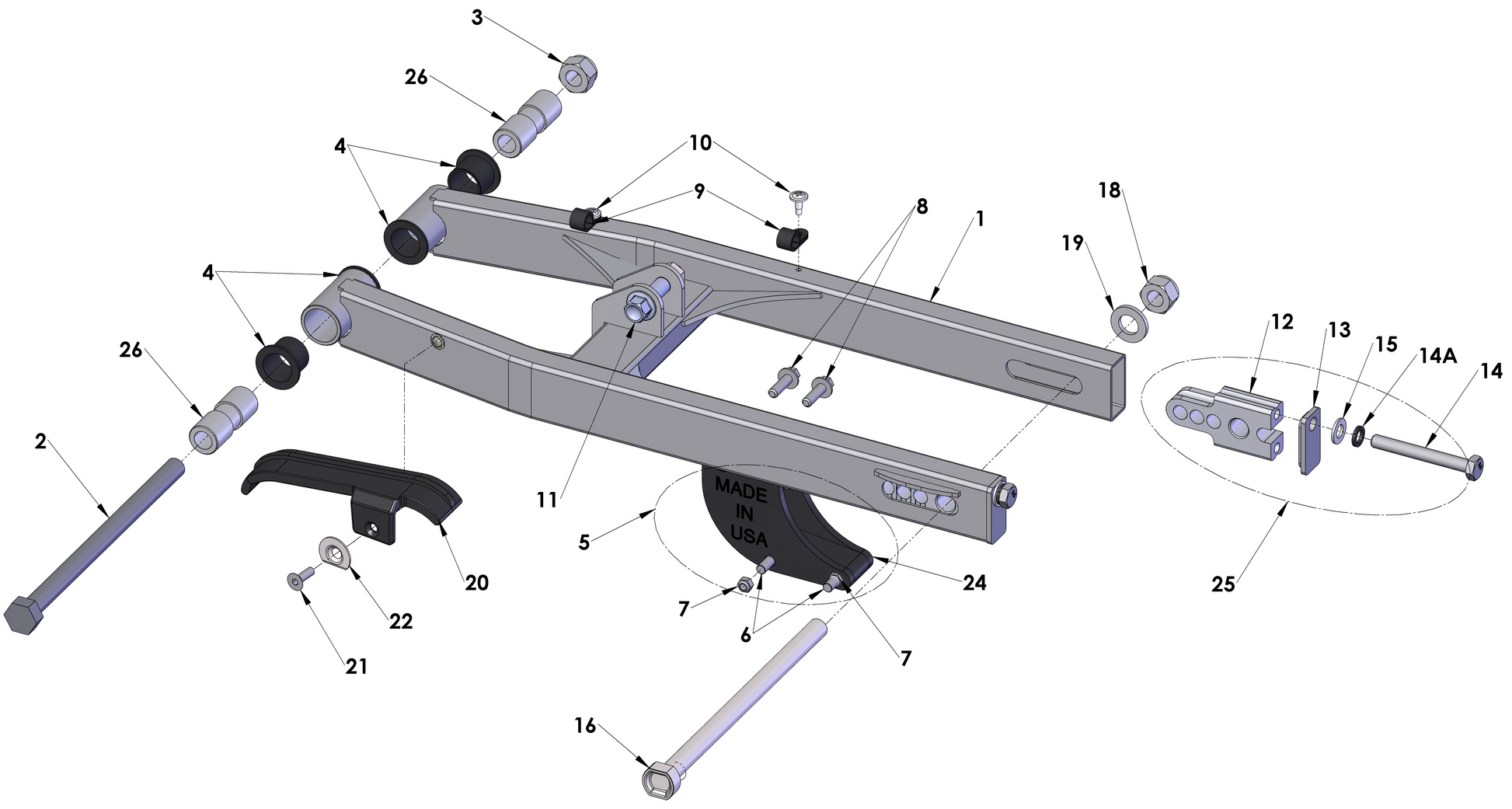

2018 Cobra CX50 FWE - SWINGARM ASSEMBLY
2018 Cobra CX50 FWE - SWINGARM ASSEMBLY
1. SWINGARM WELDED ASSY EXTENDED FWE
GACSBW10
$265.82
2. M12 X 195MM AXLE / PIVOT BOLT
WCMU0016
$32.14
3. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
4. SWINGARM BUSHING 1-INDIVIDUAL
GCMU0001
$10.55
5. CHAIN GUIDE ASSY - 50s AND MICRO e
PAMU0001
$49.98
6. M6 X 35 FLAT HEAD
HCBFT635
$1.09
7. M6 LOCKNUT
HCNL0601
$1.09
8. M6 X 20 FLANGE HD HEX 8MM ZINC 8.8
HCBF0620
$1.09
9. CABLE CLAMP-3/8 INCH
HCCC0000
$1.09
10. #8X1/2 SELF TAPPING SCREW
HCPP0832
$1.09
11. M10 X 39 FLANGE HEAD - SHOCK BOLT (Replaces HCBF1040)
HCBF1039
$12.11
12. WHEEL PULL
FCMU0203
$24.35
13. ENDCAP - WHEEL PULL - KING & CM
FCMU0202
$8.77
14. M8 X 65 HH FULL THREADS ZINC
HCBH1865
$1.54
14A. 8MM LOCK WASHER STANDARD
HCWL0801
$0.53
15. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
16. M12 X 195MM AXLE / PIVOT BOLT
WCMU0016
$32.14
18. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
19. 12MM FLAT WASHER
HCWF1202
$0.53
20. WINGARM CHAIN GUARD - CX50 - WITH MOHAWK
GCMU0040
$16.56
21. M5 X 16 FLAT HEAD
HCFH0516
$1.09
22. WASHER - RETAINING - SWINGARM GUARD
GCMU0038
$4.32
24. KIT - CHAIN GUIDE BOTTOM - SIDE - HARDWARE
PKMU0001
$14.99
25. WHEEL PULL ASSEMBLY
FAMU0005
$32.25
26. SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER
GCCS0001
$13.67
ACCESSORY. CHAIN GUIDE OUTER - BILLET - BLACK
PCMU0002BLK
$27.68
