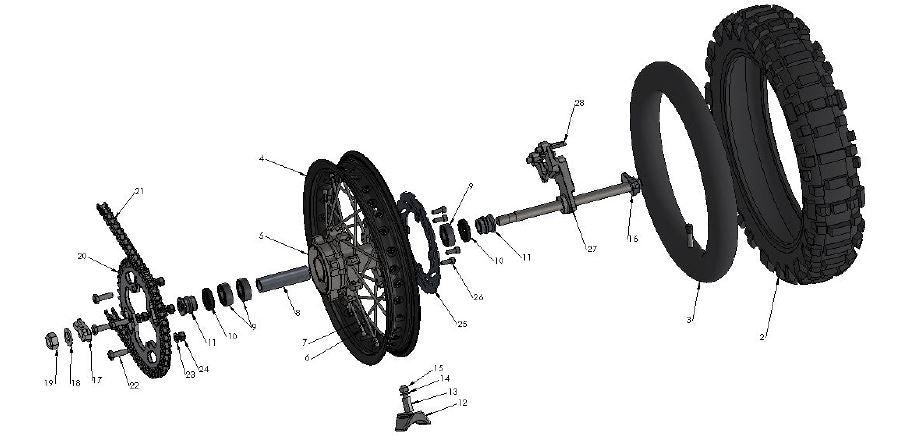

2017 Cobra CX65 - WHEEL - REAR
2017 Cobra CX65 - WHEEL - REAR
1. NLA OBSOLETE - WHEEL ASSEMBLY - REAR - CX65 2017
WAC6R017
$521.77
2. TIRE - REAR - 80/100-12 - DUNLOP MX34
WCC6R012D34
$57.27
3. TUBE - 275-80/100-12 REAR
WCDCTU12
$15.88
4. 12`` RIM BLACK
WCMU1200B
$110.03
5. HUB - REAR - SEALED - BLACK
WCC60034BLK
$377.10
6. REAR SPOKE W/ NIPPLE (1pc) - 32 PC WHEEL
WKC6RR01
$3.56
8. SPACER - REAR WHEEL BEARING
WCC60037
$22.12
9. BEARING - WHEEL-SEALED HD
WCMU0120
$20.01
10. SEAL - REAR HUB - 23 x 35 x 7
WCC60035
$14.45
11. SPACER - L&R REAR WHEEL
WCC60036
$10.99
12. RIM LOCK - 1.4/1.6
WCMU0019
$12.22
13. NLA OBSOLETE - RIM LOCK SPACER
WCDC0008
$4.32
14. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
15. 8MM NUT
HCNS0801
$0.64
16. NLA OBSOLETE - AXLE - REAR - CX65
WCC60004
$47.48
17. CHAIN ADJUST BLOCK OFFSET
GCC60010
$22.12
18. 14MM FLAT WASHER
HCWF1400
$1.09
19. M14 x 2.0 LOCKNUT
HCNL1402
$4.32
20A. SPROCKET - 39T ALUM
PCDC0039
$54.39
20B. SPROCKET - 40T ALUM
PCDC0040
$54.39
20C. SPROCKET - 41T ALUM
PCDC0041
$54.39
20D. SPROCKET - 42T ALUM
PCDC0042
$54.39
20E. SPROCKET - 43T ALUM
PCDC0043
$54.39
20F. SPROCKET - 44T ALUM
PCDC0044
$54.39
20G. NLA OBSOLETE - SPROCKET - 45T ALUM
PCDC0045
$54.39
20H. NLA OBSOLETE - SPROCKET - 46T ALUM
PCDC0046
$54.39
20I. SPROCKET - 47T ALUM
PCDC0047
$54.39
20J. SPROCKET - 48T ALUM
PCDC0048
$54.39
20K. SPROCKET - 49T ALUM
PCDC0049
$54.39
20L. SPROCKET - 50T ALUM
PCDC0050
$54.39
20M. NLA OBSOLETE - SPROCKET - 51T ALUM
PCDC0051
$58.84
20N. SPROCKET - 52T ALUM
PCDC0052
$58.84
20O. SPROCKET - 53T ALUM
PCDC0053
$58.84
21. CHAIN 420H 116L CX65 14/45
PCMU0116
$25.46
22. M8 X 25 HH ZINC
HCBH0825
$1.09
23. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
24. M8 LOCKNUT 8MM TALL
HCNL0803
$2.20
25. BRAKE ROTOR REAR
BCC60004
$74.42
26. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
27. CARRIER - BRAKE CALIPER - CX65 - CARD 2 PISTON
BCC60093
$76.65
TOOL. SPOKE NIPPLE WRENCH - ALUMINUM SPLINED
MCMUTL17
$15.44
