Cobra Moto

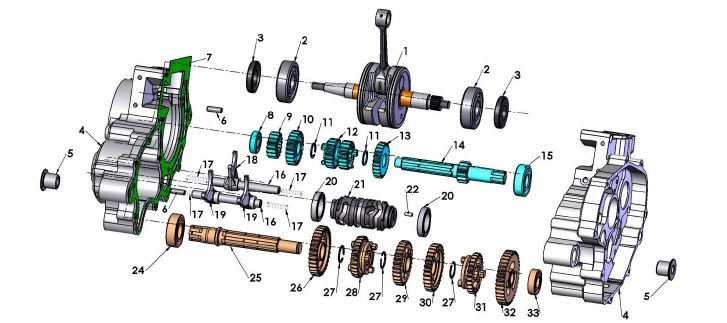

2017 Cobra CX65 - ENGINE - TRANSMISSION & INTERNAL
2017 Cobra CX65 - ENGINE - TRANSMISSION & INTERNAL
1. CRANKSHAFT 65 2015 & LATER (Replaces ECC60219)
ECC60188
$445.88
2. BEARING - CRANKSHAFT - C4
ECR60007
$38.81
3. SEAL - CRANKSHAFT
ECDC0024
$10.33
5. BUSHING - ENGINE PIVOT - 12MM
ECC60028
$13.22
6A. M6 X 30 SHCS ZINC (Replaces HCBC0603)
HCBC0630
$1.09
6B. M6 X 35 SHCS ZINC (Replaces HCBC0604)
HCBC0635
$1.09
6. DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215
ECMU0122
$2.20
7. GASKET - CENTERCASE PV 2015 CX65
ZCC60014
$15.56
8. BEARING 6001 NO SEALS
ECKG0031
$9.88
9. GEAR - 2ND INPUT 16T SPLINED
ECDC0006
$51.05
10. GEAR - 5TH INPUT 23T
ECDC0005
$51.05
11. SNAP RING - EXT 17MM
ECDC0003
$2.20
12. GEAR - 3/4TH INPUT 18/21T SPLIN
ECDC0004
$71.53
13. GEAR - 6TH INPUT 24T
ECDC0002
$55.50
14. NLA OBSOLETE - SHAFT. TRANS.INPUT
ECDC0001
$110.03
15. BEARING - 50CC CRANKSHAFT & 65CC TRANS
ECMU0016
$22.12
16. ROD - SHIFTER - HOLLOW (USE WITH ECC60071 SPRING)
ECC60070
$16.56
17. SPRING - SHIFTER ROD
ECC60071
$5.43
18. SHIFT FORK - INPUT
ECDC0048
$54.39
19. SHIFT FORK - OUTPUT 3 PAD
ECC60256
$59.98
20. BEARING - SHIFT DRUM
ECDC0022
$22.12
21. SHIFT DRUM - MACHINED - 2015 & NEWER
ECC60186
$143.42
22. DOWEL PIN 4X16.0
ECDC0051
$2.20
24. BEARING OUTPUT- 50 & 65
ECKGBR01
$29.91
25. NLA OBSOLETE - SHAFT TRANS.OUTPUT
ECDC0007
$83.32
26. NLA OBSOLETE - GEAR 2ND OUTPUT 34T 3 DOG ROUND
ECDC0014
$58.40
27. SNAP RING - EXT 18MM HEAVY DUTY
ECDC0017
$2.76
28. GEAR 5TH OUTPUT 28T 3 DOG ROUND
ECDC0013
$58.40
29. GEAR 4TH OUTPUT 30T 3 DOG ROUND
ECDC0011
$58.40
30. GEAR 3RD OUTPUT 31T 3 DOG ROUND
ECDC0010
$58.40
31. NLA OBSOLETE - GEAR 6TH OUTPUT 26T 3 DOG ROUND
ECDC0015
$58.40
32. NLA OBSOLETE - GEAR 1ST OUTPUT 37T 3 DOG ROUND
ECDC0016
$58.40
33. BEARING - OUTPUT
ECDC0021
$27.68
ACCESSORY. KIT - CONNECTING ROD -90MM MANUAL W PIN AND BIG END BEARINGS
EKC60007
$92.23
ACCESSORY. SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15
ECMU0040
$2.76
ACCESSORY. SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15
ECMU0040T
$2.76
TOOL. CRANK PULLER ASSEMBLY
EAMU0006
$76.65
TOOL. CASE SPLITTER - 65 ENGINE ONLY 2007 - CURRENT
EAMU0007
$76.65
