Cobra Moto

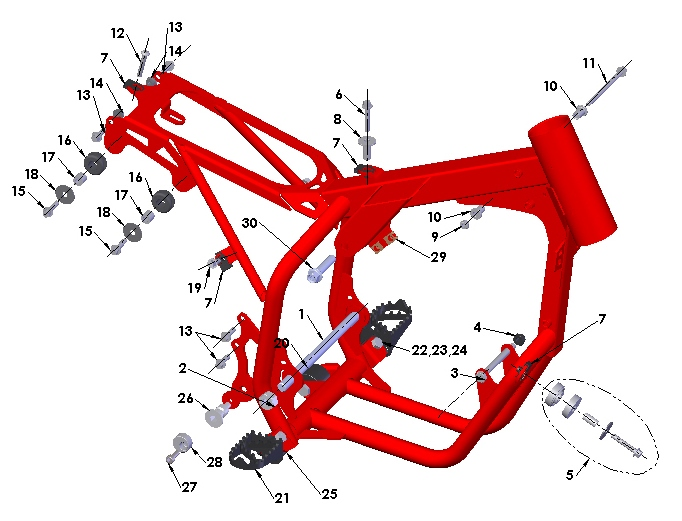

2017 Cobra CX50 P3 - FRAME 1

2017 Cobra CX50 P3 - FRAME 1

1. M12 X 195MM AXLE / PIVOT BOLT
WCMU0016
$32.14
2. M12-1.25 LOCKNUT FINE THREAD
HCNL1201
$3.20
3. M8 X 80 HH ZINC
HCBH0880
$6.66
4. M8 LOCKNUT 8MM TALL
HCNL0803
$2.20
5. GROMMET KIT PIPE & SPACER
MCMUGR02
$15.88
6. M6 X 35 FLANGE HD HEX 8MM ZINC 8.8
HCBF0635
$1.09
7. 6MM CLIP NUT-PLASTIC/PIPE MNT.
HCHA0003
$2.20
8. BUSHING-REAR TANK MOUNTING
TCHA0004
$9.88
9. M6 LOCKNUT
HCNL0601
$1.09
10. BUSHING-MOUNTING
TCHA0006
$7.65
11. M6 X 85 SHCS ZINC
HCBC0685
$1.54
12. M6 X 35 BUTTON HEAD ZINC
HCBB0635
$1.09
13. M6 X 20 FLANGE HD HEX 8MM ZINC 8.8
HCBF0620
$1.09
14. 6MM NYLOC FLANGE NUT CLASS 8
HCNF0602
$1.09
15. M6 X 25 FLANGED HD HEX 8MM ZINC
HCBF0625
$1.09
16. GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT
MCMUGR03
$4.98
17. SPACER GENERAL 1/2DIA 13.2 LG
TCKG0001
$2.76
18. 1/4`` FLAT WASHER 7/8`` OD
HCWF1478
$0.53
19. M6 X 16 FLANGED HD HEX 8MM ZINC
HCBF0616
$1.09
20. CHAIN ROLLER W BOLT BEARING & SEALS
FCC60020
$18.34
21. FOOTPEG SET (LEFT & RIGHT)
TAMU0005
$63.41
22. CLEVIS PIN - FOOTPEG
FCMU0031
$4.32
23. 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. (Replaces HCWF0801)
HCWF0802
$0.53
24. COTTERPIN - 1/8` X 3/4` 316 STAINLESS
HCCP0008
$0.53
25. SPRING - FOOTPEG STD KING/JR PEG
TCMU0106
$5.43
26. PIVOT BOLT - ALUM BRAKE PEDAL
BCMU0027
$22.12
27. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
28. BRAKE ADJUST ECCENTRIC
FCEX0018
$13.22
29. 5MM EXTRUDED ``U`` NUT
HCCN0000
$2.09
30. M10 X 39 FLANGE HEAD - SHOCK BOLT (Replaces HCBF1040)
HCBF1039
$12.11
