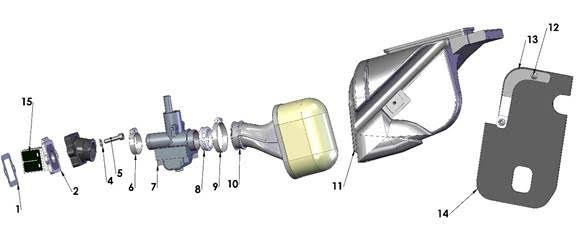

2017 Cobra CX50 P3 - AIRBOX & INLET SYSTEM
2017 Cobra CX50 P3 - AIRBOX & INLET SYSTEM
1. REED VALVE GASKET
ZCCS0001
$3.87
2. REED ASSY - TASSINARI V FORCE
ECMU0246
$165.67
3. INTAKE MANIFOLD - CX50 VENOM
RCMU0036
$49.94
4. M6 FLAT WASHER DIN 125A - ZINC CLEAR
HCWF0601
$0.53
5. M6 X 30 SHCS ZINC (Replaces HCBC0603)
HCBC0630
$1.09
6. CLAMP RAD HOSE & INLET (24-38mm)
MCKGHO04
$3.32
7. CARBURETOR - 12MM - WITH DEEP WELL
RCCL0001
$181.88
8. CARB - VELOCITY STACK-50CC
RCCM1301
$21.01
9. CLAMP - CARB TO AIR BOOT (31-50mm)
MCKGHO01
$4.88
10. AIR FILTER ASSY - JR/P3 2012 - 2024
RCCJ0004
$30.36
11. AIR BOX - JR/P3
RCMU0405
$77.76
12. M6 X 12 FLANGED HEAD BUTTON
HCBF2612
$1.99
13. MUDFLAP BRACKET-PLATED - JR/P3
RCMU1407
$14.33
14. MUDFLAP - P3
RCMU0408
$14.33
15. REED PETAL SET - 0.3 THICK TASSINARI 50CC (GREEN)
ECCS0030
$55.62
16. HOSE FUEL LINE
FCMU0026
$2.20
17. HOSE CLAMP 8MM
MCMUCL04
$2.20
18. HOSE CARB VENT
RCMU0022
$2.20
