Cobra Moto

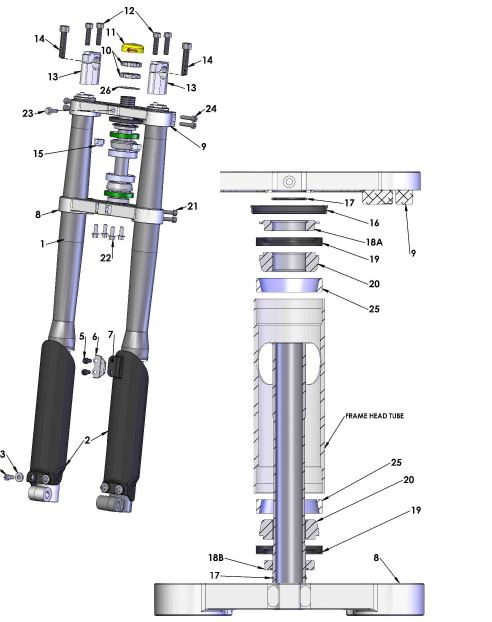

2017 Cobra CX50 KING - FORKS & TRIPLE CLAMPS
2017 Cobra CX50 KING - FORKS & TRIPLE CLAMPS
1. FORK SET COMPLETE 32MM - CALL TO ORDER
KACS2014
$984.25
2. GUARD - FORK - SET 50CC (NO HARDWARE)
KCMU0011
$29.91
3. WASHER - CHAIN SLIDER AND FORK GUARD
TCC60019
$2.76
4. M6 X 16 SHCS ZINC (Replaces HCBC0601)
HCBC0616
$1.09
5. BRAKELINE CLAMP
BCC60015
$5.54
6. M6 X 12 SHCS ZINC
HCBC0612
$1.09
7. M6 LOCKNUT
HCNL0601
$1.09
8. TRIPLE CLAMP BOTTOM ASSY KING 2014 32MM
FACS0007
$205.73
9. TRIPLE CLAMP TOP KING 2014 32MM
FCCS0053
$143.42
10. JAM NUT STEERING STEM
HCNJ0102
$14.33
11. STEERING STEM CAP
FCMU0151
$5.54
12. 8 X 30 SHCS ZINC (Replaces HCBC0806)
HCBC0830
$1.09
13. HANDLE BAR RISER KIT - SHORT (STOCK)
TKMU0404
$48.83
13A. HANDLE BAR RISER KIT - TALL
TKMU0403
$54.39
14. 10 X 45 SHCS ZINC WHEN OUT USE HCBC1040
HCBC0820
$1.88
16. DUST SEAL - STEERING HEAD - SMALL ID
FCMU0079
$9.88
17. O-RING - CLUTCH SLAVE (MINERAL OIL) & STEERING STEM SEAL
ZCMUOR35
$2.20
18A. SPACER STEERING STEM W DUST SHIELD PILOT
FCMU0038
$8.77
18B. SPACER STEERING STEM (THICK)
FCMU0037
$8.77
19. SEAL - STEERING STEM - 8MM THK
FCMU0039
$18.78
20. BEARING - STEERING TAPERED
FCMU0004
$16.56
21. M6 X 30 SHCS ZINC (Replaces HCBC0603)
HCBC0630
$1.09
22. M6 X 16 FLANGED HD HEX 8MM ZINC
HCBF0616
$1.09
23. M6 X 16 FLANGED HD HEX 8MM ZINC
HCBF0616
$1.09
24. M8 X 25 SHCS ZINC
HCBC0825
$1.09
25. RACE FOR STEERING HEAD
FCMU0011
$8.77
26. SHIM - WASHER 1" x 1.5" x.020" STEERING STEM
HCWS1015
$3.20
KIT. STEERING STEM SEALS AND SPACERS 2016-2018
FKMU0006
$99.02
TOOL. SOCKET JAM NUT STEERING HEAD
MCMUTL11
$43.26
TOOL. STEERING STEM BEARING AND SEAL INSTALLER AS
MCMUTL44
$72.20
