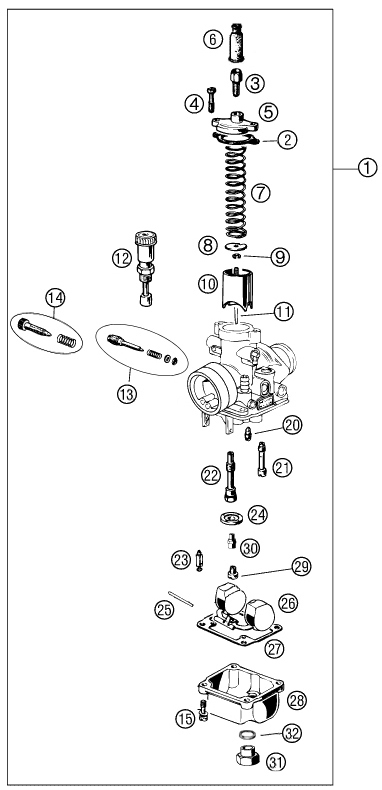

2017 Cobra CX50 FWE - CARBURETOR
2017 Cobra CX50 FWE - CARBURETOR
1. CARBURETOR-19MM - WITH DEEP WELL
RACS0019
$181.88
2. GASKET - CARB CAP
ZCMU0007
$3.32
3. CARB - CABLE ADJUSTER DELLORTO STRAIGHT
RCMU0003
$3.20
4. CARB - TOP SCREW #10A
RCMU0006
$1.09
5. CARB - TOP CAP - DELLORTO
RCMU0106
$5.88
6. CARB - RUBBER CABLE CAP SEAL-#8 - DELLORTO
RCMU0102
$3.87
7. SPRING - SLIDE - DELLORTO - LIGHT
RCMU0004L
$9.88
8. CARB - NEEDLE RETAINER PLATE #13
RCMU0028
$6.54
9. CARB - NEEDLE CLIP #14
RCMU0007
$2.20
10. SLIDE #40 - CARB - DELLORTO
RCMU0305
$38.81
11. NEEDLE - W7 - DELLORTO CARB
RCMU0601
$14.33
12. CARB - CHOKE ASSY - DELLORTO
RCMU0204
$16.56
12A. O-RING - CHOKE ASSEMBLY - DELLORTO
RCMU0209
$1.09
13. CARB - FUEL MIXTURE SCREW #16
RCMU0009
$14.33
14. CARB - IDLE ADJUSTMENT SCREW #18
RCMU0011
$5.43
15. CARB - FLOAT BOWL SCREW - DELLORTO
RCMU0201
$1.98
20. PILOT JET - 55 - DELLORTO
RCMU0055
$6.32
20A. PILOT JET - 48 - DELLORTO
RCMU0048
$6.32
20B. PILOT JET - 50 - DELLORTO
RCMU0050
$6.32
20C. PILOT JET - 52 - DELLORTO
RCMU0052
$6.32
20D. PILOT JET - 65 - DELLORTO
RCMU0065
$6.32
22. ATOMIZER AU262 FOR DELLORTO PHBG STANDARD
RCMU0262
$18.78
23. CARB - FLOAT NEEDLE - DELLORTO
RCMU0107
$7.21
24. DIFFUSER - DELLORTO PHBG STANDARD 1.6
RCMU0012
$5.43
25. CARB - FLOAT RETAINER PIN #22
RCMU0016
$2.20
26. CARB - FLOAT #7
RCMU0301
$25.46
27. CARB - FLOAT BOWL GASKET - DELLORTO
RCMU0103
$5.43
28. BOWL - CARB FLOAT W/ THREADED HOLE - DELLORTO PHBG
RCMU0043
$33.25
29. MAIN JET - 93 - DELLORTO
RCMU0093
$6.32
29A. MAIN JET - 89 - DELLORTO
RCMU0089
$6.32
29B. MAIN JET - 90 - DELLORTO
RCMU0090
$6.32
29C. MAIN JET - 91 - DELLORTO
RCMU0091
$6.32
29D. MAIN JET - 92 - DELLORTO
RCMU0092
$6.32
29E. MAIN JET - 94 - DELLORTO
RCMU0094
$6.32
29F. MAIN JET - 95 - DELLORTO
RCMU0095
$6.32
30. EXTENSION - MAIN JET - DELLORTO PHBG
RCMU0044
$8.77
31. PLUG - FLOAT BOWL - DELLORTO PHBG
RCMU0039
$10.99
32. GASKET - DELLORTO BOWL PLUG
ZCMU0037
$0.53
ACCESSORY. SLIDE # 30 DELLORTO
RCMU0031
$38.81
ACCESSORY. SLIDE # 50 DELLORTO
RCMU0250
$38.81
ACCESSORY. SLIDE # 60 DELLORTO
ECKG0160
$38.81
ACCESSORY. NEEDLE - W4 - DELLORTO CARB
RCMU0026
$13.67
ACCESSORY. NEEDLE - W16 - DELLORTO CARB
RCMU0602
$14.33
NOT SHOWN. CARB - VELOCITY STACK-50CC
RCCM1301
$21.01
NOT SHOWN. FUEL LINE KING 50 2010 AND NEWER
RCCS0006
$2.20
NOT SHOWN. HOSE CLAMP 8MM
MCMUCL04
$2.20
NOT SHOWN. ELBOW - CARB VENT
RCMU0020
$4.32
NOT SHOWN. CANNULUS - Y STYLE CARB VENT SYSTEM - DELLORTO
RAMU0001
$16.56
